POS-35001

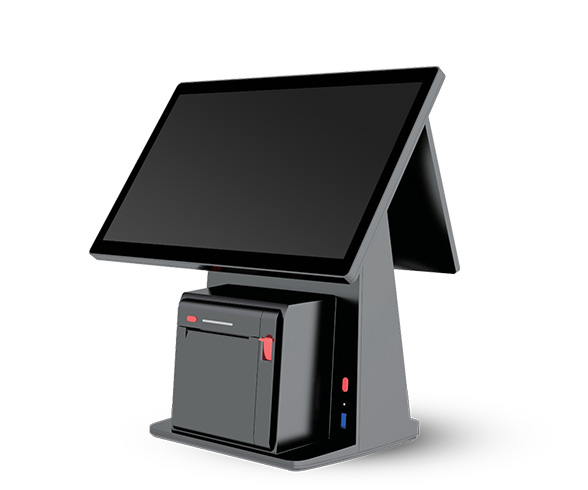

14inch Windows POS with 80mm Printer
Features :
- Quickly upgradeable RAM and SSD to increase system specifications
- No need for cabling - easily upgrade to high-speed wireless access
- Consolidate peripheral integrations for attended and unattended applications
- Intel i3 /i5 /i7 and Celeron® configurations
- Compatible in both Windows 10 IoT, Windows 10 PRO, and Linux
- Easily hide cables in the base for a clean installation
- Support ESC/POS /OPOS Driver, interface USB/RS232/ Bluetooth
Specification
| POS-35001 | |
|---|---|
|
DISPLAY |
14-inch IPS (BOE brand) |
|
Resolution |
1920*1080 |
|
PROCESSOR |
Intel Celeron J4125, J6412 Quad-Core, up to 2.70 GHz, 2.60GHz, Intel Core i3/i5 3rd, 4th, 5th, 6th, 7th, 8th CPU |
|
MEMORY |
2GB, DDR3L or DDR4, up to 8GB/16GB |
|
STORAGE |
MSATA or M.2 64GB standard, up to 512GB |
|
ASPECT RATIO |
16:9 |
|
BRIGHTNESS |
250 nits |
|
TOUCHSCREEN |
True flat capacitive touch |
|
PRINTER MECHANISM |
80mm receipt thermal printer with auto cutter |
|
COMMANDS |
ESC/POS, OPOS driver |
|
PAPER SIZE |
80*70mm |
|
USB |
3*USB2.0, 2*USB3.0 |
|
LAN |
1*RJ45 1000M, 1*RJ11 |
|
SERIAL |
1*COM (RS232) |
|
VGA |
1*VGA |
|
AUDIO |
1*Audio |
|
DC |
Input AC 100~240V/50~60hz, Output DC 12V/7A |
|
OS |
Windows 10/11 |
|
2ND DISPLAY |
7/10.1 inch (Touch on 2nd display optional) |
|
SCANNER |
Embedded scanner option, support 1D, 2D |
|
CARD READER |
NFC optional |
|
4G MODULE |
Support 4G TD-LTE, FDD-LTE (optional) |
|
WIFI |
2.4G or 2.4G+5G (optional) |
|
BLUETOOTH |
Bluetooth 4.2 protocol/BLE (optional) |
|
SPEAKER |
1*3W speaker (optional) |
|
OPERATING TEMPERATURE |
0°~50° |
|
STORAGE TEMPERATURE |
-20°~60° |
|
NET WEIGHT |
5.9kg |
|
CERTIFICATIONS |
CE, FCC |
|
WARRANTY |
2 YEARS |
