PPC-10017
PPC-10017

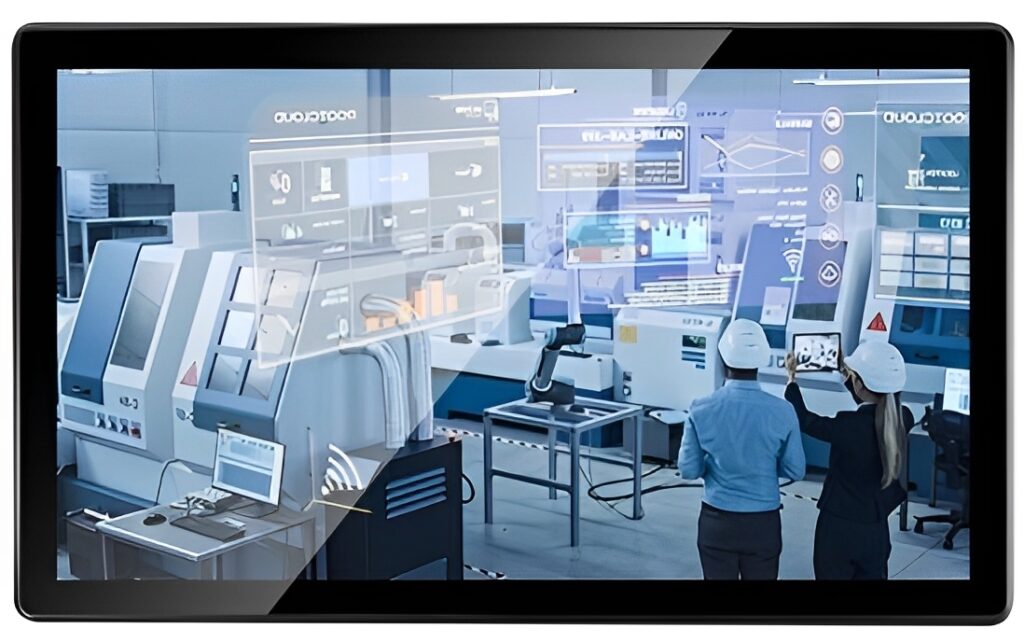

21.5” Non-Touch Panel Pc i7-13th Gen with Fanless Design
Features :
- 21.5" true color LCD display with 1920*1080 resolution
- The front panel is IP65 rated to prevent dust and splashing water droplets from entering the display
- Intel i7-13th Gen Processor
- 19v DC power input
- Both panels embedded and standard VESA mounting are supported
- 4 x USB, 2 x GLAN
Description
21.5” Non-Touch Panel Pc i7-13th Gen with Fanless Design
Specification
| PPC-10017 | |
|---|---|
|
SIZE |
21.5” (16:9) |
|
CPU |
Intel i7-13700 Gen Processor with Max Turbo frequency 5.20GHz |
|
RAM |
NB-DDR4 memory, supports 2133/2400/2666/2933/3200MHz memory,
maximum support 128G
|
|
RESOLUTION |
1920* 1080 |
|
STORAGE |
1 * SATA, 1 * M.2 |
|
ETHERNET |
2 * RJ45 |
|
AUDIO |
Realtek ALC897, High-Definition Audio (HD), Line in, Line out |
|
USB |
2xUSB 3.2, 3xUSB 2.0 |
|
SERIAL PORT |
RS232x4 (COM1 can be adjusted to RS485, RS422) |
|
BRIGHTNESS |
250Cd/m2 |
|
DISPLAY OUTPUT |
1 * DP, 1* HDMI |
|
DISPLAY |
21.5” TFT LED |
|
CONTRAST |
800:1 |
|
EXPANSION |
1*MINI_PCIE Support WIFI/3G/4G/Bluetooth module |
|
MAXIMUM
COLOR |
16M |
|
RESPONSE TIME |
15ms |
|
VIEW ANGLE |
85°/85°/85°/85° (R/L/U/D) |
|
TRANSMITTANCE |
above 91% |
|
HIGH
TEMPERATURE |
85℃/1000hr |
|
CONSTANT TEMP
AND HUNIDITY |
5%~95% @ 40° C, non-condensing |
|
VIBRATION |
5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
|
INSTALLATION |
wall-mounting, VESA 100×100mm, 75x75mm |
|
POWER INPUT |
19V DC power supply |
|
DIMENSION |
525.80.5mm x 317.3mm x48.6mm |
|
CABINET |
Aluminium profile face frame Abrasive back shell |
|
POWER
CONSUMPTION |
<30W |
|
FRONT PANEL |
IP65 STANDARD |
|
OPERATING
TEMPERATURE |
-10～60℃ |
|
STORAGE
TEMPERATURE |
-20～70℃ |
|
WARRANTY |
3 years |
