PPC-10007

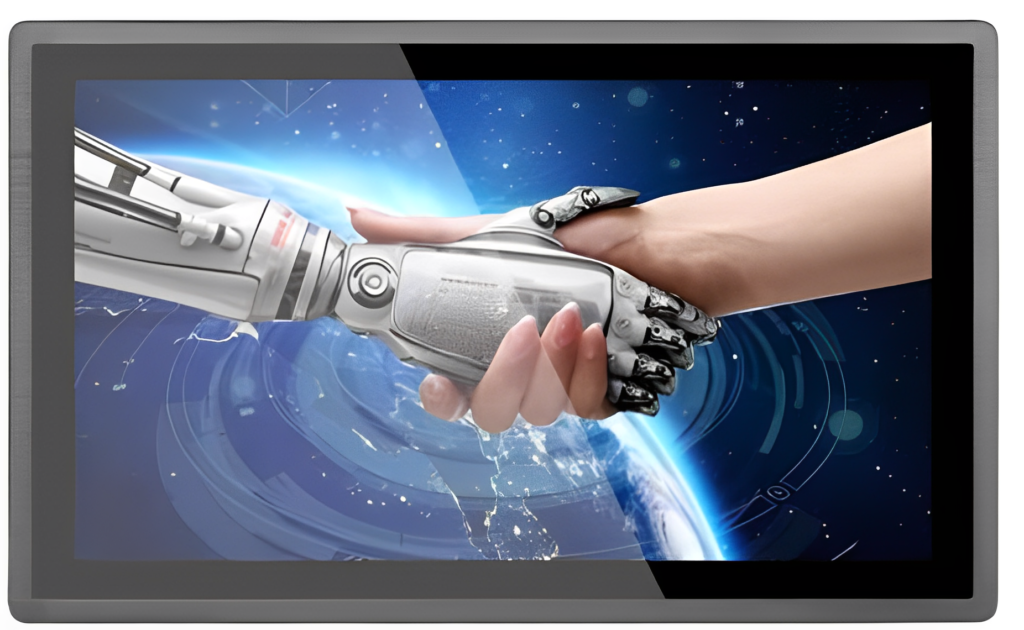

21.5” Capacitive Touch Panel Pc Intel Core i5 -6th Gen with Fanless Design

Features :

21.5" true color LCD, resolution 1920 x 1080.
The touch screen uses a full plane capacitive touch screen, up to 35 million clicks.
DC in connector to meet the industrial field power supply.
The ultra-thin design saves cabinet space and is resistant to shock and vibration.
High-precision capacitive touch screen, with many industrial site application features, while supporting panel embedded and standard VESA installation, users can flexibly choose the installation method.

21.5” Capacitive Touch Panel Pc Intel Core i5 -6th Gen with Fanless Design

PPC-10007
LCD DISPLAY	21.5’’
CPU	Intel Core i5 -6th Gen
RAM	DDR4 2133/2400/1866MHz Memory slots, up to 32GB
MAX. RESOLUTION	1920* 1080
STORAGE	1* SATA3.0, supporting SSD
NETWORK PORT	1* Realtek RTL8111E Gigabit network card.
AUDIO	1 x Line -in; 1 x Line-out
USB	USB 3.0 x 2, USB 2.0 x 2
BRIGHTNESS	300cd/m2
EXPANSION	1* Mini-PCIe Slot, supporting WIFI/4G 1* M-SATA SSD
GRAPHICS	CPU Integrated graphics HD Graphics and support 1080p HD photo quality
CONTRAST	1000:1
DISPLAY RATIO	16:9
TYPES	10 point projective capacitive
VIEW ANGLE	89°/89°/89°/89° (R/L/U/D)
RESPONSE TIME	15ms
DISPLAY PORTS	1 * VGA, 1 * HDMI
SERIAL PORTS	2 * RS232
CONSTANT TEMPERATURE	5%~95% @ 40° C
HUMIDITY TEST	Non-condensing
INSTALLATION METHOD	wall-mounting, VESA 100×100mm
POWER INPUT	Support 12V DC power supply
OVERALL DIMENSION	552mm x339mm x57mm
CERTIFICATION	CE, FCC, ROHS
OPERATING TEMPERATURE	-10～60℃
STORAGE TEMPERATURE	-20～70℃
WARRANTY	1 Year
