PPC-10006
PPC-10006

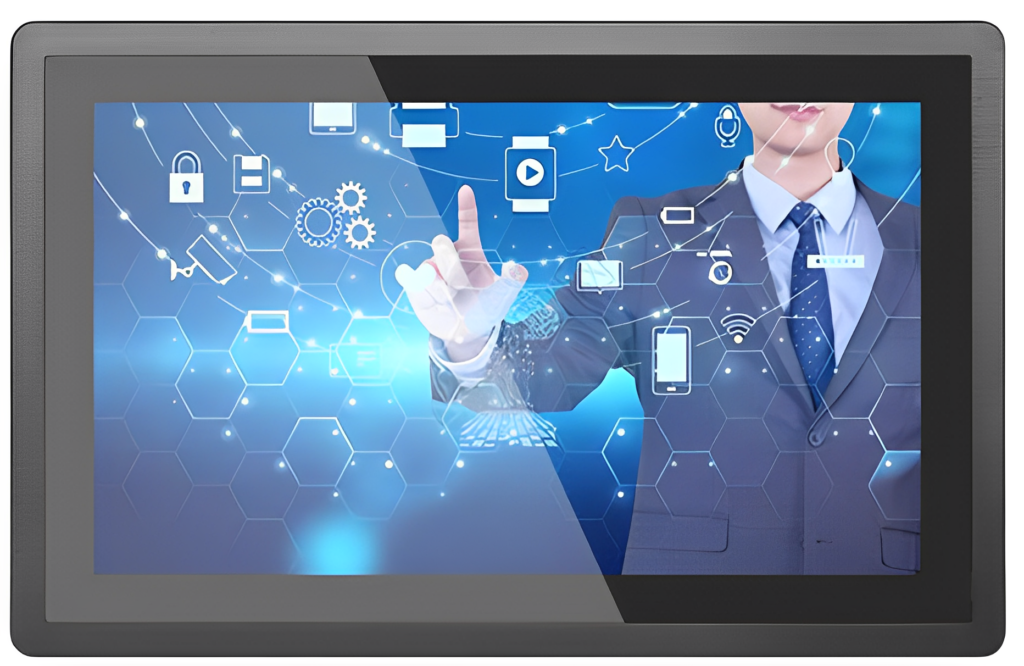

15” Capacitive Touch Panel Inter Celeron J1900 with Fanless Design
Features :
- 15" true colour LCD, resolution 1024 x 768.
- The touch screen uses a full plane capacitive touch screen, up to 35 million clicks.
- 12v DC in supply.
- The ultra-thin design saves cabinet space and is resistant to shock and vibration.
- High-precision capacitive touch screen, with many industrial site application features, while supporting panel embedded and standard VESA installation, users can flexibly choose the installation method.
Specification
15” Capacitive Touch Panel Inter Celeron J1900 with Fanless Design
| PPC-10006 | |
|---|---|
|
LCD DISPLAY |
15’’ |
|
CPU |
Inter Celeron J1900, quad core, 2.0Ghz, fanless |
|
RAM |
1 * DDR3 1333Mhz Memory slots, up to 8GB |
|
MAX. RESOLUTION |
1024 X 768 |
|
STORAGE |
1* SATA3.0 & 1* M-SATA, supporting SSD |
|
NETWORK PORT |
2×Realtek RTL 8111E10M/100M/1000M |
|
AUDIO |
Realtek ALC662, High-Definition Audio |
|
USB |
USB3.0(External 2 * USB3.0) USB2.0(External 2 * USB2.0) |
|
BRIGHTNESS |
250cd/m2 |
|
EXPANSION |
2* Mini-PCIE expansion slot, support WIFI/3G/4G/MSTA/GPS/Bluetooth |
|
GRAPHICS |
CPU Integrated graphics HD Graphics and support 1080p HD photo quality |
|
CONTRAST |
800:1 |
|
DISPLAY RATIO |
4:3 |
|
TYPES |
10 point projective capacitive |
|
VIEW ANGLE |
85°/85°/85°/85° (R/L/U/D) |
|
RESPONSE TIME |
<8ms |
|
DISPLAY PORTS |
1 * VGA, 1 * HDMI |
|
SERIAL PORTS |
2 * RS232 |
|
CONSTANT TEMPERATURE AND HUMIDITY TEST |
5%~95% @ 40° C, non-condensing |
|
INSTALLATION METHOD |
wall-mounting, VESA 100×100mm |
|
POWER INPUT |
Support 12v DC power supply |
|
OVERALL DIMENSION |
378mm x297mm x57mm |
|
CERTIFICATION |
CE, FCC, FOHS |
|
OPERATING TEMPERATURE
|
-10℃～60℃ |
|
STORAGE TEMPERATURE
|
-20℃～70℃ |
|
WARRANTY |
1 Year |
