PPC-02010
PPC-02010

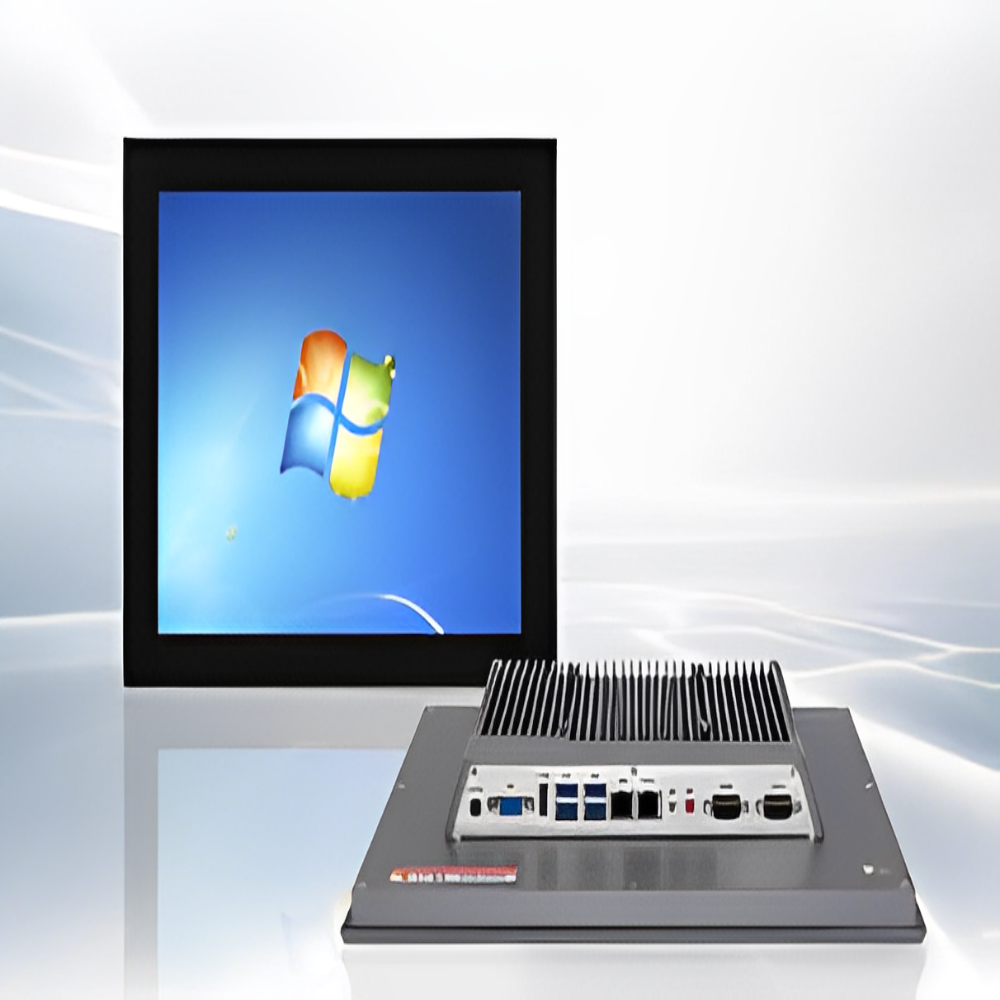

15“ Capacitive Touch Panel Pc i5-4th Gen with Fanless Design
Features :
- 15" true color LED display with 1920*1200 resolution and a backlight service life of up to 50000 Hours.
- The front panel is IP65 rated to prevent dust and splashing water droplets from entering the display.
- Ultra-thin design, save cabinet space, shock, and vibration resistance.
- 12 ~ 36V wide voltage DC power input, meet the industrial field power supply.
- High-precision capacitive screen, with many application characteristics in industrial sites.
- Both panels embedded and standard VESA mounting are supported, allowing users to flexibly choose the installation method.
Specification
15“ Capacitive Touch Panel Pc i5-4th Gen with Fanless Design
| PPC-02010 | |
|---|---|
|
LCD DISPLAY |
15’’ |
|
CPU |
i5-4260U |
|
RAM |
1*DDR3L SODIMM memory slot support single channel 1600/1333MHz DDR3L/1.35V memory, max 8GB |
|
MAX. RESOLUTION |
1920×1200 |
|
STORAGE |
1* M-SATA/ 1* SATA |
|
NETWORK PORT |
2 x Intel Gigabit Ethernet |
|
AUDIO |
RTLALC662 audio controller, LINE-out port |
|
USB |
4 * USB 3.0 port |
|
SERIAL PORT |
2 x RS232 COM |
|
BRIGHTNESS |
350cd/m2 |
|
DISPLAY |
15” TFT LED |
|
CONTRAST |
800:1 |
|
MAXIMUM COLOR |
16M |
|
TYPES |
High precision capacitive |
|
CLICK LIFE |
250 grams of strength, 50 million times |
|
RESPONSE TIME |
< 5ms |
|
TRANSMITTANCE |
above 91% |
|
HIGH TEMPERATURE TEST |
85℃/1000hr |
|
CONSTANT TEMPERATURE AND HUMIDITY TEST |
85℃/90%RH/1000hrs |
|
INSTALLATION METHOD |
VESA mountable with bracket |
|
POWER INPUT |
12~36V DC power supply |
|
OVERALL DIMENSION |
435mm x 360mm x 57mm |
|
PANEL CABINET |
Aluminium profile face frame Abrasive back shell |
|
OPERATING TEMPERATURE |
-20～60℃ |
|
STORAGE TEMPERATURE |
-30～80℃ |
|
CERTIFICATIONS |
CE, FCC |
|
WARRANTY |
1 Year |
