PPC-10016
PPC-10016

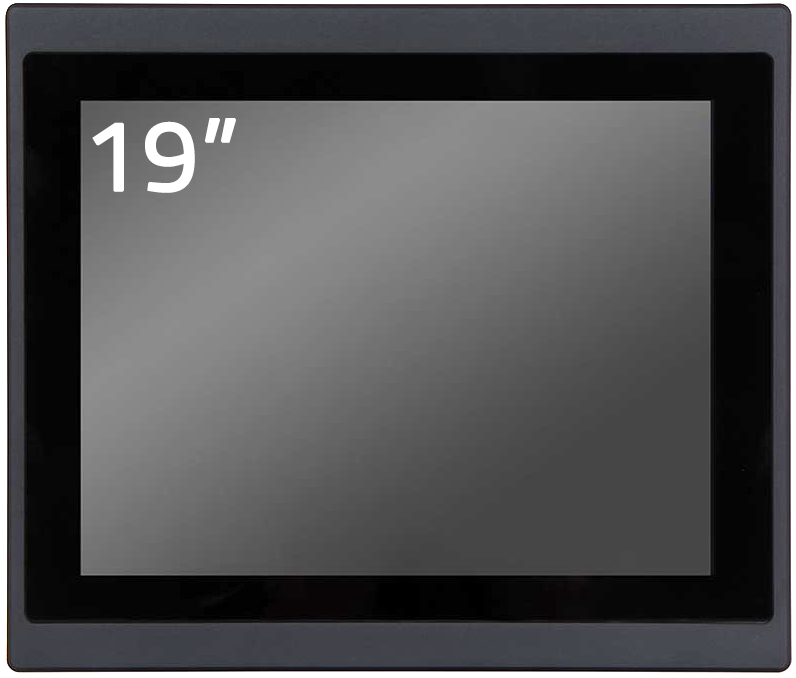

19” Panel Pc i7-13th Gen with Fanless Design
Features :
- 19" true color LCD display with 1280*1024 resolution
- The front panel is IP65 rated to prevent dust and splashing water droplets from entering the display
- Intel i7-13th Gen Processor
- 12v DC power input
- High-precision capacitive screen
- Both panels embedded and standard VESA mounting are supported
- 4 x USB, 2 x GLAN
Description
19” Panel Pc i7-13th Gen with Fanless Design
Specification
| PPC-10016 | |
|---|---|
|
SIZE |
19” (4:3) |
|
CPU |
Intel i7-13700 Gen Processor with Max Turbo frequency 5.20GHz |
|
RAM |
NB-DDR4 memory, supports 2133/2400/2666/2933/3200MHz memory, maximum support 128G
|
|
RESOLUTION |
1280 * 1024 |
|
STORAGE |
1 * M-SATA, 1 * M.2 |
|
ETHERNET |
2 * RJ45(1*INTEL I219+1*RTL811H) |
|
AUDIO |
RTLALC662 audio controller, LINE-out port |
|
USB |
2xUSB 3.2 3XUSB2.0 |
|
SERIAL PORT |
RS232x4 (COM1 can be adjusted to RS485, RS422) |
|
BRIGHTNESS |
350 350cd/m2 |
|
DISPLAY OUTPUT |
1 * VGA, 1* HDMI |
|
DISPLAY |
10.1” TFT LED |
|
CONTRAST |
500:1 |
|
MAXIMUM
COLOR |
16M |
|
TOUCH |
High precision capacitive |
|
EXPANSION SLOT |
1xStandard PCI-E X4 interface, 1* 1*MINI_PCIE Support WIFI/3G/4G/Bluetooth module
|
|
RESPONSE TIME |
<8ms |
|
VIEW ANGLE |
85°/85°/80°/80° (R/L/U/D) |
|
TRANSMITTANCE |
above 91% |
|
HIGH
TEMPERATURE |
85℃/1000hr |
|
CONSTANT TEMP
AND HUNIDITY |
5%~95% @ 40° C, non-condensing |
|
INSTALLATION |
VESA mountable with bracket |
|
POWER INPUT |
12V DC power supply |
|
DIMENSION |
425.5mm x 349.3mm x 51.8mm |
|
CABINET |
Aluminium profile face frame Abrasive back shell |
|
POWER
CONSUMPTION |
30W |
|
FRONT PANEL |
IP65 STANDARD |
|
OPERATING
TEMPERATURE |
-10～60℃ |
|
STORAGE
TEMPERATURE |
-20～70℃ |
|
WARRANTY |
3 years |
