PPC-05003
PPC-05003

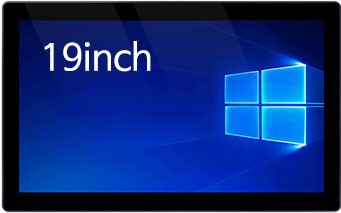

19“ Capacitive Touch Panel Pc i3,i5,i7-3/4/6/7/8/10/11 Gen with Fanless Design
Features :
- 19” 350 nits TFT LED Display.
- Projected Capacitive Touch.
- Streamlined enclosure for highly efficient Heat dissipation.
- Enclosed in robust aluminium casing.
- Front IP65 for protection against water and dust.
- A true flat, edge to edge design.
- Panel Embedded, VESA Mounting with Bracket.
- 12-36V DC-input.
Description
19“ Capacitive Touch Panel Pc i3,i5,i7-3/4/6/7/8/10/11 Gen with Fanless Design
Specification
| PPC-05003 | |
|---|---|
|
SIZE |
19’’ |
|
CPU |
Intel® 3/4/6/7/8/10/11 Corei3/i5/i7 |
|
RAM |
1*DDR4 SODIMM memory slot |
|
MAX. RESOLUTION |
1280 x 1024 @60Hz resolution |
|
STORAGE |
1 * M-SATA / 1 * SATA |
|
NETWORK PORT |
1 x Intel Gigabit Ethernet |
|
VGA |
1920 * 1200 |
|
HDMI |
1920 * 1200 |
|
SERIAL PORT |
2 * RS232 |
|
USB |
4 * USB 3.0 |
|
DISPLAY |
19” TFT LED |
|
CONTRAST |
800:1 |
|
MAXIMUM COLOR |
16M |
|
TYPES |
High precision capacitive |
|
AUDIO |
1*Hp-out /1*Mic-in |
|
RESPONSE TIME |
<5ms |
|
TRANSMITTANCE |
up to 95% |
|
BRIGHTNESS |
350nits |
|
CLICK LIFE CYCLE |
50 Million Times |
|
POWER INPUT |
DC version: 12 ~36V DC. |
|
OVERALL DIMENSION |
435mm*360mm*57mm |
|
OPERATING TEMPERATURE |
-20 ~ 60° C |
|
STORAGE TEMPERATURE |
-30 ~ 80° C |
|
PANEL CABINET |
IP65, Aluminium alloy Mold |
|
CERTIFICATIONS |
CE, FCC, IP65(Front) |
|
WARRANTY |
1 Year |
