PPC-02002
PPC-02002

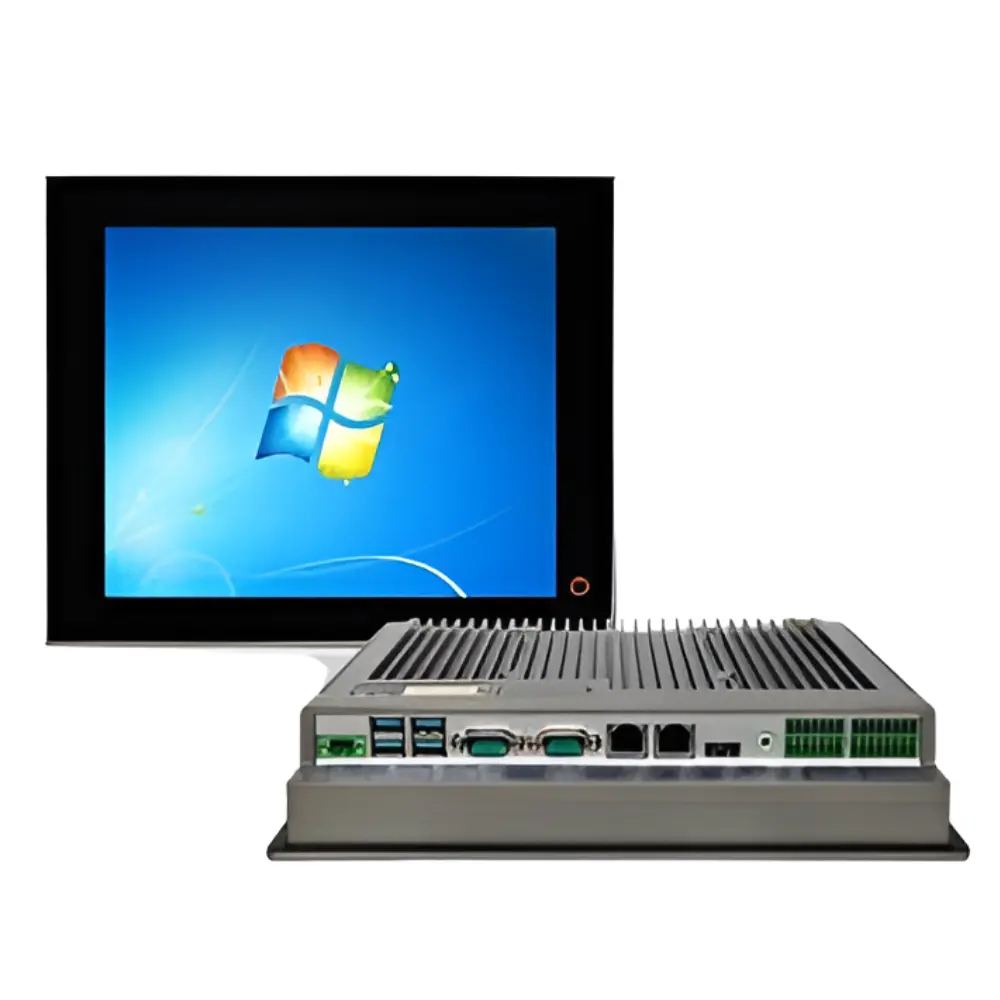

10.4” Panel Pc with i5-7th Gen Processor with Fanless Design
Features :
- 10.4" true color LCD display with 1024*768 resolution
- The front panel is IP65 rated to prevent dust and splashing water droplets from entering the display.
- Intel i5-7th Gen Processor.
- 9 ~ 36V wide voltage DC power input.
- High-precision capacitive screen
- Both panel embedded and standard VESA mounting are supported.
- 4 x USB, 2 x GLAN
Description
10.4” Panel Pc with i5-7th Gen Processor with Fanless Design
Specification
| PPC-02002 | |
|---|---|
|
SIZE |
10.4” |
|
CPU |
I5-7200U |
|
RAM |
4GB DDR3/4 onboard (extensible) |
|
RESOLUTION |
1024 * 768 |
|
STORAGE |
1 * M-SATA, |
|
ETHERNET |
2 * RJ45 |
|
AUDIO |
RTLALC662 audio controller, LINE-out port |
|
USB |
4 *USB 3.0 Port |
|
SERIAL PORT |
4 x RS232+1 x RS485+1 x (RS232/422/485)optional |
|
BRIGHTNESS |
250cd/m2 |
|
DISPLAY |
10.4” TFT LED |
|
CONTRAST |
800:1 |
|
MAXIMUM
COLOR |
16M |
|
TOUCH |
High precision capacitive |
|
CLICK LIFE CYCLE |
250 grams of strength, 50 million times |
|
RESPONSE TIME |
<5ms |
|
TRANSMITTANCE |
above 90% |
|
HIGH
TEMPERATURE |
85℃/1000hr |
|
CONSTANT TEMP
AND HUNIDITY |
85℃/90%RH/1000hrs |
|
INSTALLATION |
VESA mountable with bracket |
|
POWER INPUT |
9~36V DC power supply |
|
DIMENSION |
288mmx230mmx51mm |
|
CABINET |
Aluminium profile face frame Abrasive back shell |
|
POWER
CONSUMPTION |
30W |
|
FRONT PANEL |
IP65 STANDARD |
|
OPERATING
TEMPERATURE |
-20～60℃ |
|
STORAGE
TEMPERATURE |
-30～80℃ |
|
WARRANTY |
2 years |
