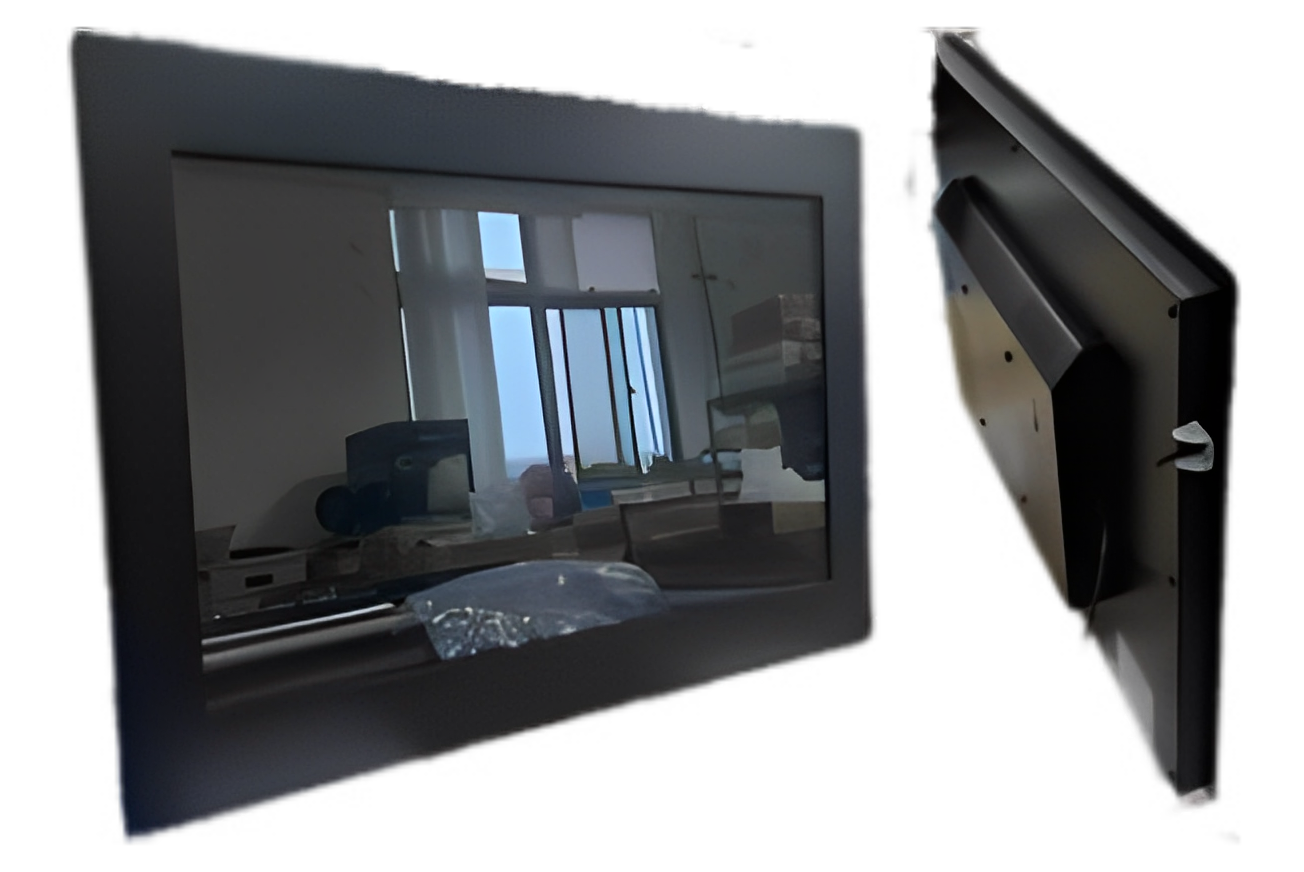

IM-03005

27 “Industrial Grade NON-Touch Monitor

Features :

Supports 4K Ultra High Definition
Realistic UHD Picture Quality
Supports 10-bit data processing
Supports UCE (Ultra-Clear-Engine) de-interlace and noise reduction
Supports PIP/PBP
Auto-tuning function including phasing, positioning, offset, gain, and jitter detection
Build-in 2W speaker
Advanced SoC solution processing IC for the state-of-the-art UD (3840x2160) display LCD monitors
Protectable metal housing
Support VESA Standard bracket
Protectable metal casing

IM-03005
LCD PANEL	27“LCD Panel
ACTIVE AREA(MM)	596.736×335.664
PICTURE FORMAT	16:9
MAX. RESOLUTION	3840×2160
PIXEL PITCH (MM)	0.1554×0.1554
COLOURS	1.07G colors
BRIGHTNESS	350 cd/m² [LED]
CONTRAST	1000:1
RESPONSE TIME (TR/TF)	18ms (G to G)
VIEW ANGLE (U/D/L/R)	89/89/89/89
USB INPUT	1x USB A type (update firmware)
HDMI 1	1x (A Type) 3840×2160(max) (Depends on signal source & HDMI cable, both must be ready for HDMI 2.0)
HDMI 2	1x (Type A), 1920×1080(max)
DISPLAY PORT INPUT	1x (DP)_3840x2160(max)
VGA	1x VGA input (D-Sub 15 pin), 1920×1080(max)
DVI	1x DVI-D input_1920x1080(max)
AUDIO	1x PC Audio input (3.5ψphone jack), 1x Earphone output (3.5ψphone jack)
COM	1x RS232 input (D-SUB 9pin) DICOM Calibration System(option)
SPEAKER	2x built-in speaker (2 watt)
PICTURE-IN PICTURE (PIP)	Yes
OSD SETTING	Yes
POWER INPUT	Approx. TBD watt
WARRANTY	1 Year
DIMENSIONS (WXHXD) MM	TBD
WEIGHT	TBD
OPERATING TEMPERATURE	0° to 50° C
CERTIFICATIONS	CE, FCC
WARRANTY	2 YEARS
