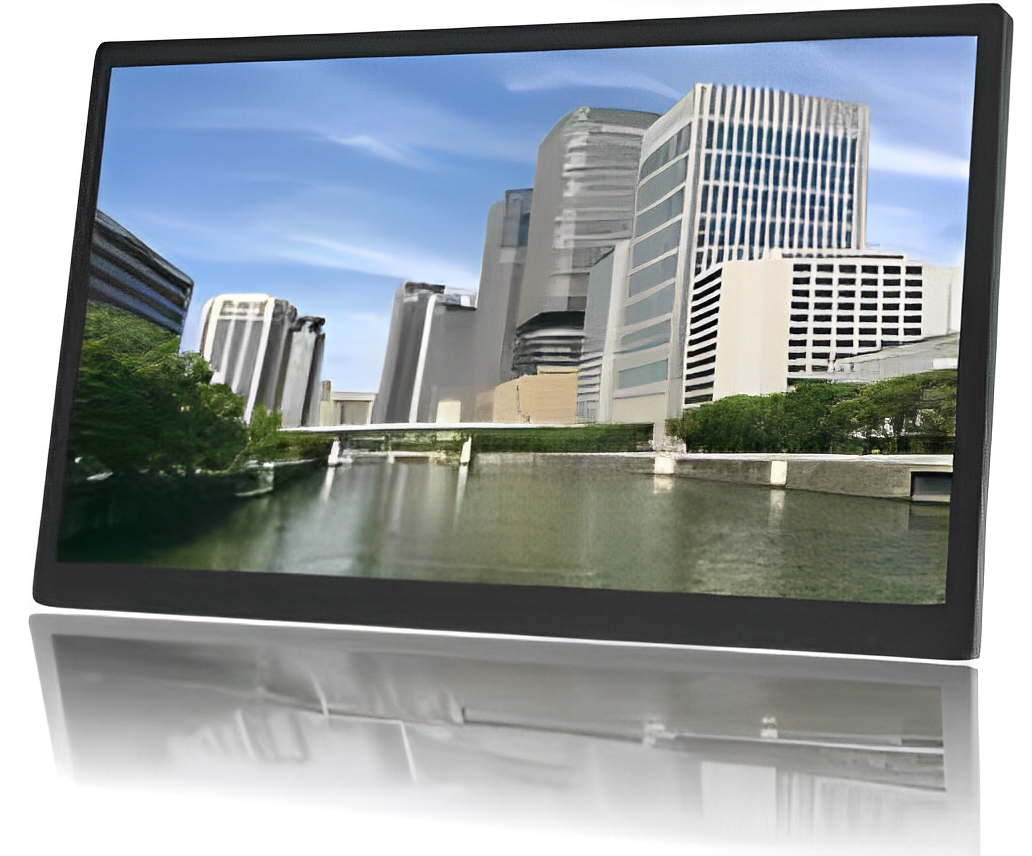

IM-03003
27“ Industrial Grade Non Touch Monitor
Features :
- Experience a New Level of Clarity with 4K Ultra High Definition
- Realistic UHD Picture Quality
- True 10 bits color processing engine
- Supports UCE (Ultra-Clear Engine) de-interlace and noise reduction
- Supports PIP/PBP
- Auto-tuning function including phasing, positioning, offset, gain, and jitter detection
- Advanced SoC solution processing IC for the state-of the-art UD (3840x2160) display LCD monitors
- Build-in 2W+2W speaker
- VESA standard bracket
- Protectable Metal Housing
Specification
| IM-03003 | |
|---|---|
|
LCD PANEL |
27“ |
|
ACTIVE AREA(MM) |
596.736×335.664 |
|
PICTURE FORMAT |
16: 9 |
|
MAX. RESOLUTION |
3840×2160 |
|
PIXEL PITCH (MM) |
0.1554×0.1554 |
|
COLOURS |
1.07G colors |
|
BRIGHTNESS |
600 cd/m²[LED] |
|
CONTRAST |
1000 :1 |
|
RESPONSE TIME (TR/TF) |
18ms (G TO G) |
|
VIEW ANGLE (U/D/L/R) |
89/89/89/89 |
|
USB INPUT |
1x USB A type (update firmware) |
|
HDMI 1 (HDMI2.0) INPUT |
1x (A Type) _ 3840×2160(max) (Depends on signal source & HDMI cable, both must be ready for HDMI 2.0) |
|
HDMI 2 INPUT |
1x (A Type) _1920x1080(max) |
|
DISPLAY PORT INPUT |
1x (DP)_3840x2160(max) |
|
PC INPUT |
1x VGA input (D-Sub 15 pin) _1920x1080(max)
1x DVI-D input_1920x1080(max)
1x PC Audio input (3.5ψphone jack)
1x RS232 input (D-SUB 9pin) DICOM Calibration System(option)
|
|
AUDIO OUTPUT |
1x Earphone output (3.5ψphone jack) |
|
SPEAKER |
2x built-in speaker (2 watt) |
|
PICTURE IN PICTURE |
YES |
|
OSD SETTING |
YES |
|
POWER CONSUMPTION |
Approx 40W |
|
DIMENSION |
2x built-in speaker (2 watt) |
|
OPERATING TEMPERATURE |
0°C to 50° C |
|
POWER INPUT |
AC 100-240V 50/60Hz, Adapter DC 12V |
|
ACCESSORIES |
1 * Power Adaptor,1* VGA Cable, 1* HDMI Cable, 1 * Panel Mount Clamp |
|
WARRANTY |
1 Year |
