IM-03001

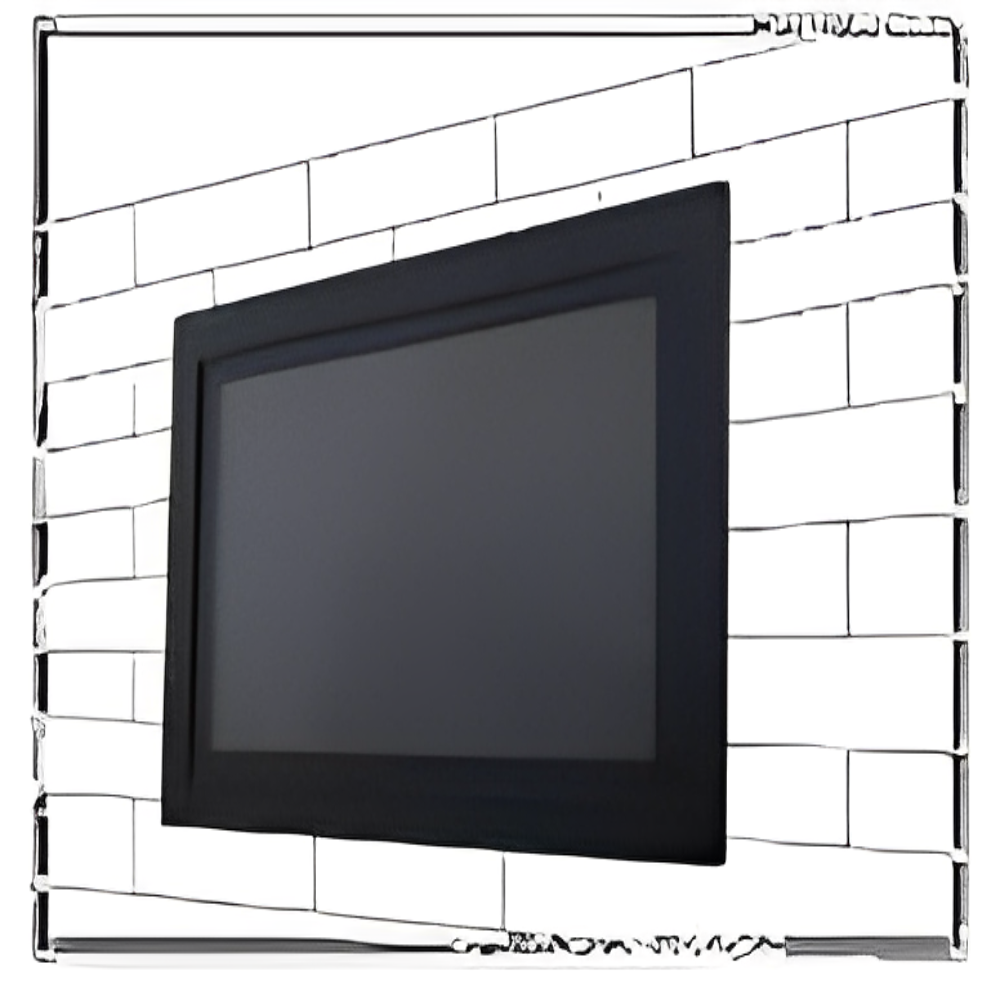

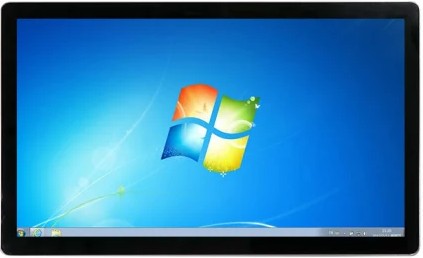

18.5“Industrial Grade Capacitive Touch Monitor
Features :
- Projected capacitive multi touch screen.
- Full Screen Touch Glass Display
- True 10 bits color processing engine
- Independent color management (ICM)
- Dynamic contrast control (DCC)
- Supported 1080p Full HD
- Build-in 2W+2W speaker
- VESA standard bracket
- Multi-Function Display
- Protectable Metal Housing
Specification
| IM-03001 | |
|---|---|
|
LCD PANEL |
18.5“ |
|
ACTIVE AREA(MM) |
408.96×230.4 |
|
PICTURE FORMAT |
16: 9 |
|
MAX. RESOLUTION |
1920×1080 |
|
PIXEL PITCH (MM) |
0.213×0.213 |
|
COLOURS |
16.7M |
|
BRIGHTNESS |
350 cd/m²[LED] |
|
CONTRAST |
1000 :1 |
|
RESPONSE TIME (TR/TF) |
10/10 ms |
|
VIEW ANGLE (U/D/L/R) |
89/89/89/89 |
|
FULL HD INPUT |
1x Full HD (HDMI A Type) |
|
RS232 INPUT |
1x(D-Sub 9 pin) Serial Settings for communication with Screen |
|
PC INPUT |
1x VGA input (D-Sub 15 pin) / 1x DVI-D input / 1x HDMI input (A Type) 1x DP input (Display port) / 1x PC Audio input (3.5ψphone jack) |
|
EARPHONE OUT |
1xPhone jack ,3.5ψ |
|
SPEAKER |
2x built-in speaker (2 watt) |
|
TOUCH SCREEN CONTROLLER |
USB |
|
TOUCH SCREEN TYPE |
Projected capacitive multi-touch screen |
|
TOUCH SCREEN HARDNESS |
≧6H |
|
TOUCH POINT |
Single/Multi |
|
TOUCH SCREEN INPUT METHOD |
Finger |
|
TOUCH SCREEN TRANSPARENCY |
≧86% |
|
OPERATING TEMPERATURE |
10°C to 50° C |
|
POWER INPUT |
AC 100-240V 50/60Hz, Adapter DC 12V |
|
ACCESSORIES |
1 * Power Adaptor,1* VGA Cable, 1* HDMI Cable, 1 * Panel Mount Clamp, 1* USB Touch Cable. |
|
WARRANTY |
1 Year |
