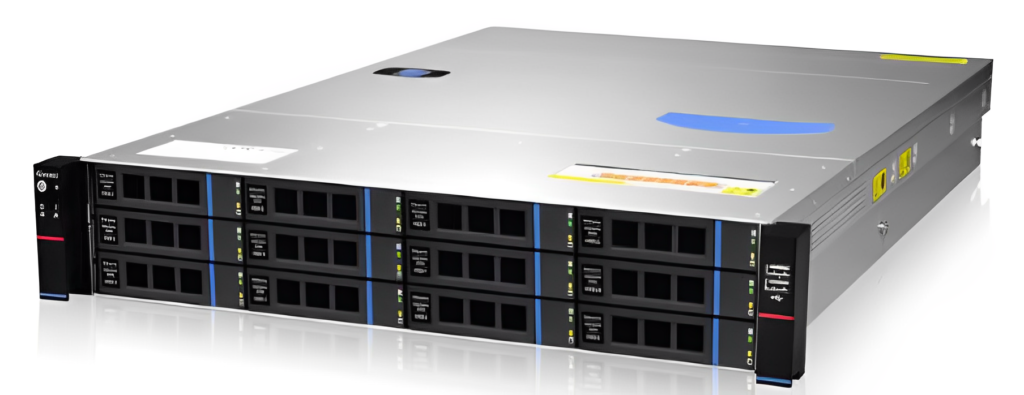

NAR-02006
Intel Xeon 2nd Gen based 2U Rackmount based server
Features :
- Support dual Intel Xeon Scalable-SP and 2nd Gen Intel Xeon Scalable-SP processors which offer two IntelĀ® Ultra Path Interconnect (UPI) links of up to 10.4 GT/s.
- Support up to 2TB of 3DS LRDIMM/LRDIMM/RDIMM/NV-DIMM DDR4 ECC 2933/2666/2400/2133 MHz memory in 8 memory slots.
- Max support 2 x PCIe 3.0 x16 slots, 3 x PCIe 3.0 x8 slots, 1 x PCIe 3.0 x4 in x8 slot for expansion LAN Module.
- Dual LAN with Marvell 88E1512 Gigabit Ethernet PHY.
- Graphics controller via AST2500 BMC (Baseboard Management Controller).
- Trusted Platform Module (TPM) 2.0.
- Support 2U ATX Redundant Power Supply.
Specification
| NAR-02006 | |
|---|---|
|
FORM FACTOR
|
2U Rackmount |
|
CPU |
Dual Intel Xeon Scalable-SP and 2nd Gen Intel Xeon Scalable-SP processors |
|
CHIPSET |
IntelĀ® skylake C621 |
|
BIOS |
256Mb AMI BIOS SPI Flash ROM |
|
PCIe |
2 * PCI-Express 3.0 x16 slots supported by CPU1 and CPU2
3 * PCI-Express 3.0 x8 slots supported by CPU1
1 * PCI-Express 3.0 x4 in x8 supported by CPU1
|
|
M.2 |
M.2 Interface: 1 SATA/PCI-E 3.0 x4, M.2 Form Factor: 2260, 2280 |
|
RAM |
8 LRDIMMs, 3DS LRDIMM/LRDIMM/RDIMM/NV-DIMM DDR4 ECC 2933/2666/2400/2133 MHz memory in 8 memory slots, 2TB |
|
HDD/SSD |
Multi 14 Hot Swap Disk RAID array per server. |
|
ETHERNET |
Dual LAN with Marvell 88E1512 Gigabit Ethernet PHY |
|
LED |
CPU/Overheating, Power/Suspend-state indicator Fan failure, UID/remote UID, HDD activity, LAN activity |
|
POWER BUTTON |
1 |
|
CONSOLE |
1 x RJ45 Console |
|
USB |
2 x USB 2.0 |
|
PROCESSOR |
Yes |
|
INTERNAL RTC WITH LI BATTERY |
Yes |
|
SYSTEM |
1 * Cooling fan |
|
WATCHDOG |
Yes |
|
POWER INPUT |
2U Redundant 750W ATX Power Supply |
|
DIMENSION |
670mm (W) x 444mm (D) x 87.6mm (H) |
|
OPERATING TEMPERATURE |
0Ā°C ā 40Ā°C |
|
STORAGE TEMPERATURE |
-40Ā°C ā 75Ā°C |
|
CERTIFICATIONS |
RoHS/CE/FCC |
|
WARRANTY |
2 Years |
