NAR-02002

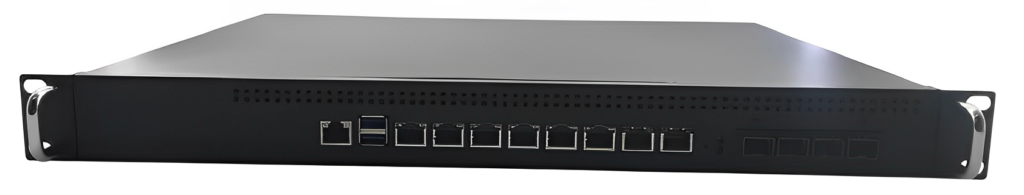

Intel® LGA1155 i5-6th Gen based 1U Rackmount based server
Features :
- 1U standard chassis, high quality galvanized steel plate.
- Supports Intel® LGA1155 packaged i5-6500 3.20GHz Quad core four thread processor with TDP 65W.
- Support 1xVGA interface display output.
- Support 8*Intel i211 GbE Ethernet cards, supports Wake On LAN, PXE booting.
- Support 1*expanded NIM with 4 x GbE/10GbE SFP or 4 x GbE RJ45(optional).
- Support 2*USB3.0 interface, 4 x USB 2.0 headers.
- Supports SSD, SATA HDD storage.
- Supports 1 x RS232 console port (RJ45 type, Cisco Standard).
Specification
| NAR-02002 | |
|---|---|
|
FORM FACTOR
|
1U Rackmount |
|
CPU |
Supports Intel® LGA1155 packaged i5-6500 3.20GHz Quad core four thread processor with TDP 65W |
|
CHIPSET |
Integrated Intel® B150 Express Chipset |
|
BIOS |
AMI SPI FLASH BIOS |
|
MINI PCIe |
1*Mini-PCIE slot, support WIFI, 3G module, 1* PCIe x8 |
|
RAM |
2 x SODIMM, DDR3 2133/2400, 32GB |
|
HDD/SSD |
Support 2*2.5 inch or 1*3.5-inch hard disk expansion |
|
MSATA |
1 |
|
ETHERNET |
8* Intel i2111 Gigabit LAN, support Wake on LAN, PXE function |
|
LED |
Power LED x 1, HDD Active x 1 |
|
POWER BUTTON |
1 |
|
CONSOLE |
1 x RJ45 Console |
|
USB |
2 x USB 3.0 |
|
DISPLAY |
1 x VGA,1920X1200@60Hz |
|
PROCESSOR |
Yes |
|
INTERNAL RTC WITH LI BATTERY |
Yes |
|
SYSTEM |
2x Cooling fan |
|
WATCHDOG |
Yes |
|
POWER INPUT |
Built-in 1U standard power supply (90~264V) |
|
OPERATING TEMPERATURE |
0℃～45℃ |
|
STORAGE TEMPERATURE |
-20°C – 70°C |
|
CERTIFICATIONS |
CE, FCC, RoHS |
|
WARRANTY |
2 Years |
