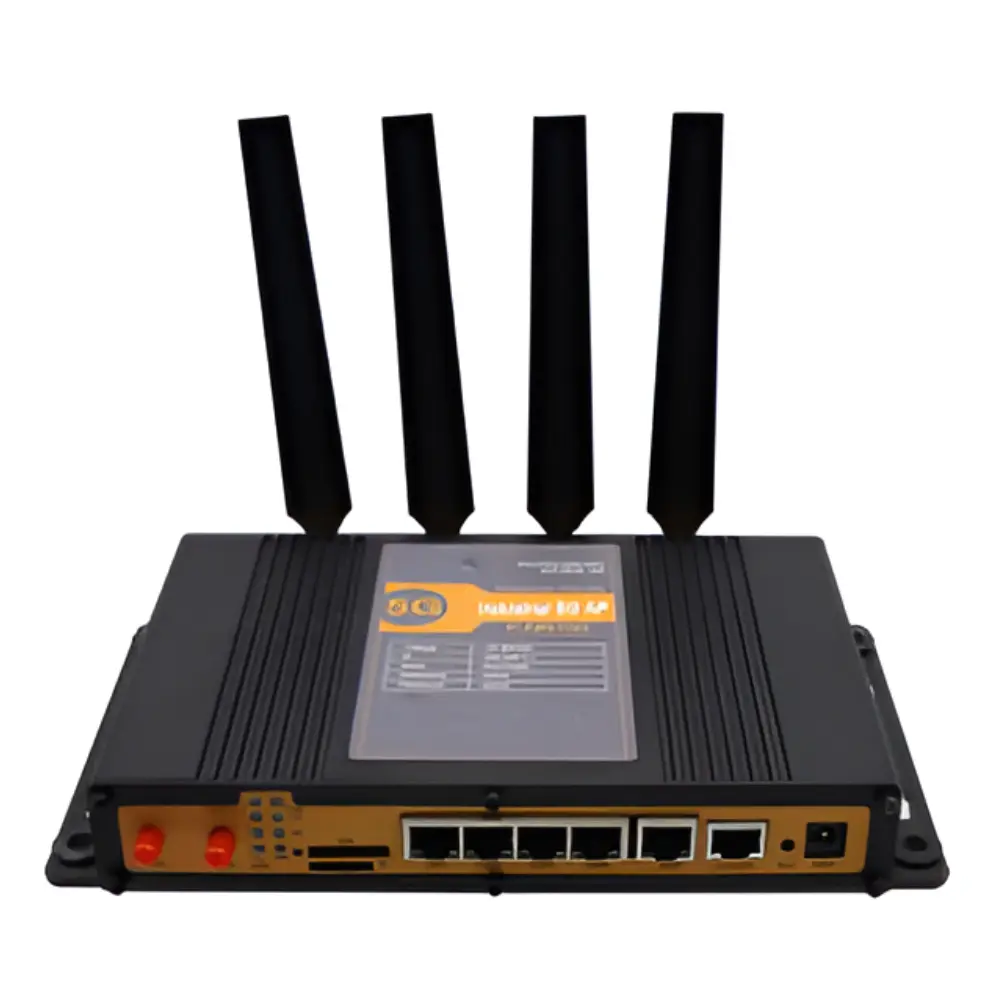

Wireless module

Industrial-grade wireless module

Standard and Frequency band

5G NR : n1/n2/n3/n5/n7/n8/n20/n28/n41/n66/n71/n77/n78/n79 LTE:B1/B2/B3/B4(66)/B5(18/19/26)/B7/B8/B12(17)/B13/B14/B20/B25/B26/B28/B29 /B30/ B38/B39/B40/B41/B42/B43/ B46/ B48/B71

Theoretical Bandwidth

5G NR：Downlink rate 3.4Gbps , uplink rate 350Mbps LTE Cat20：Downlink rate 2.0Gbps, uplink rate 150Mbps HSPA+：Downlink rate 42Mpbs, uplink rate 5.76 Mbps

Transmitting Power

<23dBm

Receiving Sensitivity

<-97dBm

Standard and Frequency Band

Support IEEE802.11b/g/n, 2.4G, support AP mode, Station mode (optional) Support IEEE802.11ac, 5.8G, support AP mode, Station mode (optional)

Theoretical Bandwidth

26dBm(11b), 21.5dBm(11g), 20dBm(11n), 16dBm(11ac)

Receiving Sensitivity

<-72dBm@54Mpbs

CPU

Industrial-grade 32-bit communication processor

FLASH

Nor flash 16MB(expandable 64MB), nand flash 128MB

DDR 3

512MB

eMMC

8G/32GB, optional

WAN Port

1*10/100/1000M RJ45 copper port, self-adaptive MDI/MDIX, built-in 1.5KV electromagnetic isolation protection

LAN Port

4*10/100/1000M RJ45 copper ports, self-adaptive MDI/MDIX, built-in 1.5KV electromagnetic isolation protection

Serial Interface

1*RS232 serial port, built-in 15KV ESD protection, serial port parameters

Indicator

With “PWR”, “SYS”, “WIFI”, “SIM”, “Online”, “Signal Strength”, etc

I/O Interface

6-contact 3.5 mm-spacing terminal block;2 inputs, 1 output, and 1 relay Input high level: 5 to 30 VDC, Input Low Level: 0 to 3 VDC Load current is <50mA @ 30VDC, Relay load: 1A 250VAC/30VDC

Antenna Interface

Cellular: 4*SMA female interface, characteristic impedance 50Ω WIFI: 2*SMA male interface, characteristic impedance 50Ω

SIM/UIM Card Interface

Standard drawer-type user card interface, with 1.8V / 3V SIM / UIM card support, and built-in 15KV ESD protection

Power

DC9~36V , DC12V/1.5A

Operating Temperature

-35~+75ºC(-31~+167℉)

Storage Temperature

-40~+85ºC(-40~+185℉)
