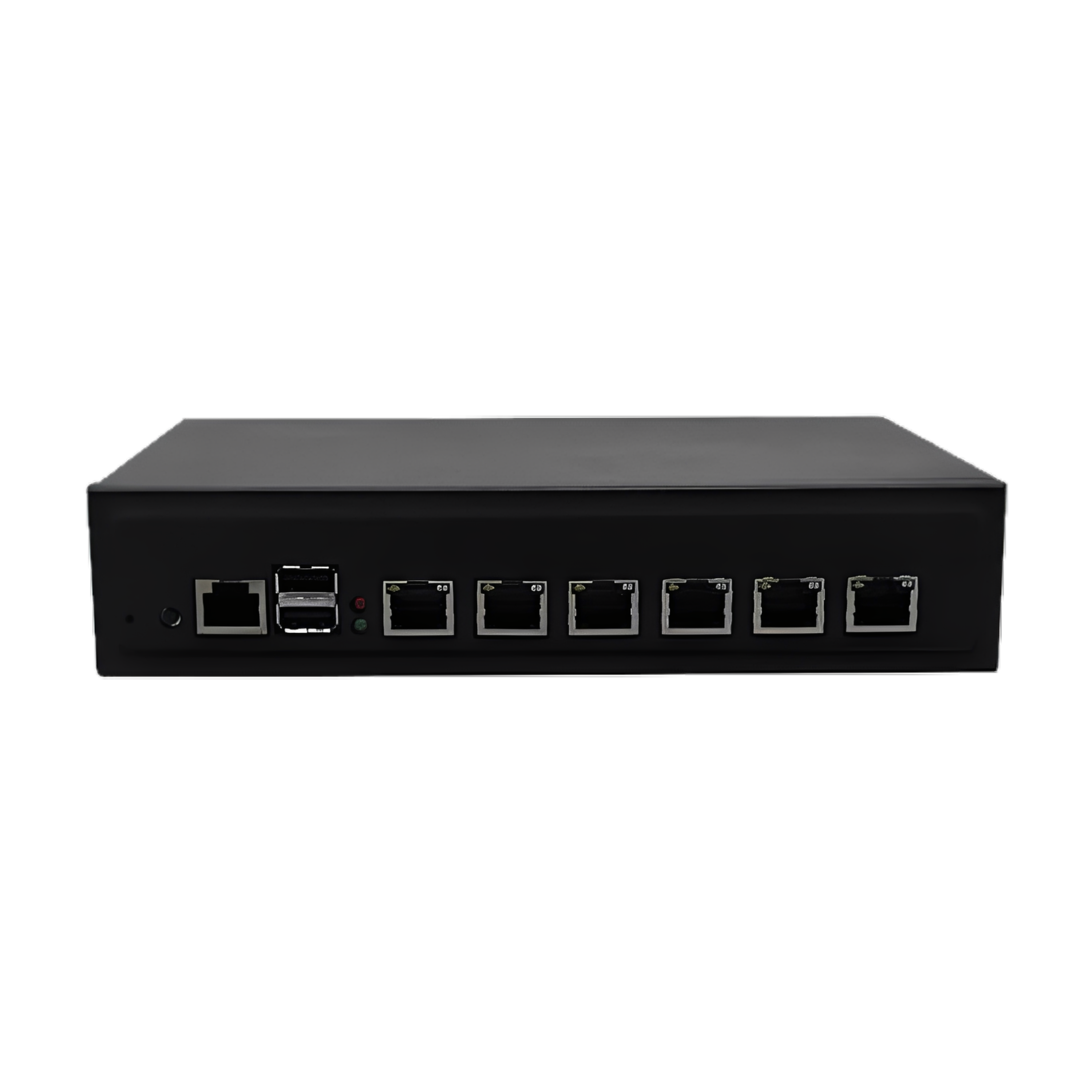

NAD-02001
IntelĀ® Celeron J6412 Desktop Network Appliance
Features :
- Integrated IntelĀ® Celeron J6412 2.0GHz quad-core Quad-thread processor, TDP 10W.
- 6 x Intel I225 2.5Gbps network.
- 1 x SODIMM slot, support single channel 2400MHz DDR4 memory, maximum support 8GB.
- 2 x Mini PCIE, support MSATA and 4G/3G module.
- 1 x 12V DC JACK in.
- POE support (LAN3-LAN6 optional).
- Mini desktop model.
Specification
| NAD-02001 | |
|---|---|
|
FORM FACTOR |
180 x 200mm |
|
CPU |
Intel Celeron J4125 |
|
CHIPSET |
SOC |
|
CPU SOCKET |
Onboard |
|
MINI PCIe |
Mini PCIe Socket x 1, support Wi-Fi(4G/3G) |
|
RAM |
1 x SODIMM DDR4 2400MHZ 8GB |
|
HDD/SSD |
SATA 3.0Gb/s connector x 1, Mini PCIe Socket x 1 |
|
MSATA |
1 x M-SATA |
|
ETHERNET |
6 x RJ-45 (Intel I225 2.5Gbps network) |
|
OUTPUT INTERFACE |
1 x VGA, 1*HDMI1.4 interface, maximum resolution 4096X2160@30Hz |
|
GRAPHICS CORE |
Intel Ultra HD core graphics 600 |
|
LED |
Power LED x 1, HDD Active x 1, LAN LED x 6 |
|
POWER BUTTON |
1 |
|
CONSOLE |
1 x RJ45 Console |
|
USB |
2 x USB 3.0 ports 1 x USB 2.0 via internal Header |
|
DISPLAY |
1 x VGA |
|
DC |
1 x DC 12V Jack |
|
ATX |
1 x 4pin ATX power input (can be used as 12V input and output power interface) |
|
OPERATING TEMPERATURE |
-10Ā°C ā 60Ā°C |
|
STORAGE TEMPERATURE |
-20Ā°C ā 70Ā°C |
|
CERTIFICATIONS |
CE, FCC, RoHS |
|
WARRANTY |
2 Years |
