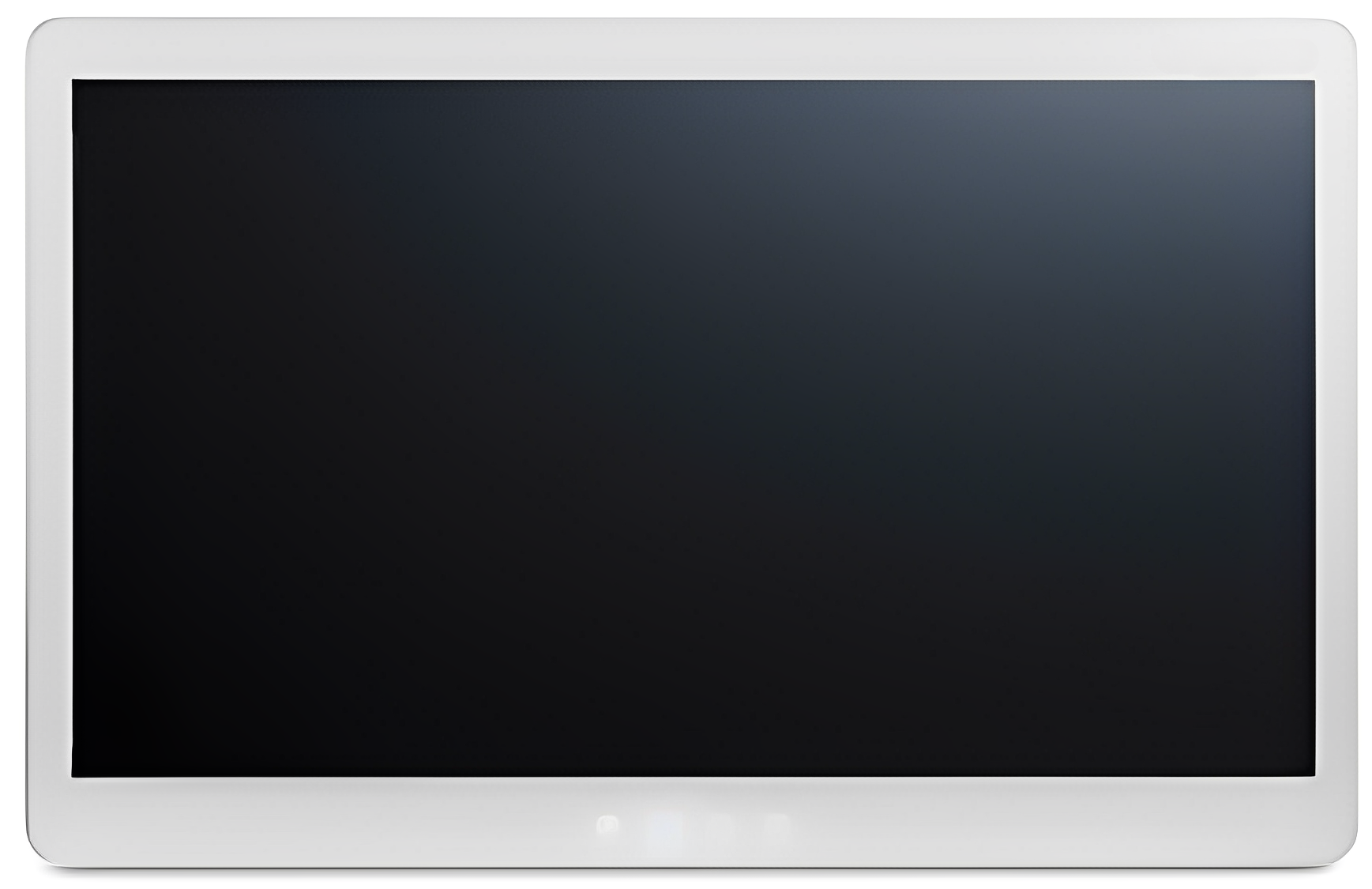

MPC-12002
Intel® Core™ i3/i5/i7-11th Gen Medical Panel PC
Features :
- Powerful 11th Gen Intel® Core™ i3 / i5 / i7 processors
- 21.5’’or 23.8’’ Full HD display with PCAP multi-touch touchscreen and anti-glare coated safety glass for unsurpassed visualization capabilities
- 4 illuminated soft-touch function keys on the front glass
- Screwless design allows for easy and faster cleaning and disinfection procedures
- Fully sealed aluminum housing and fan less design for high hygienic standards with IP54 rated ingress protection and 360 degrees anti-bacterial treatment
- USB2.0 x2, USB 3.1 x2, HDMI x1, AC-in, both isolated (4kV) for RJ45 & RS232 for mixed environments (2 MOPP) optional further IO
Specification
| MPC-12002 | |
|---|---|
|
TFT PANEL |
21.5” / 23.8” Full HD 1920 x 1080 res.,16.7M colors |
|
PANEL LUMINANCE |
21.5” with 250 cd/m²
23.8” with 400 cd/m²
|
|
VIEWING ANGLE |
178°/178° |
|
CPU |
11th Gen. Intel® Core™ i3, i5 or i7 ULV Processor |
|
RAM |
Up to 64 GB DDR4 3200 |
|
STORAGE |
M.2 SSD and SATA SSD/HDD options* |
|
M.2 |
1 x M.2 2230 size slot to support PCIex1 and USB 2.0 |
|
MINI PCIe |
1 x full size mPCIe slot to support PCIe x1 and USB 2.0 |
|
GRAPHICS OUTPUT |
1 x HDMI
1 x DisplayPort (optional) |
|
LAN |
1 x Ethernet 10/100/1000 Mbit/s, 4 kV isolated |
|
USB |
2 x USB 3.1, 4 more (optional), 2 x USB 2.0 |
|
AUDIO |
1 x Headphone jack |
|
SERIAL |
1 x RS232 4kV Isolated |
|
WI-FI/BT |
WLAN module, including Bluetooth functionality |
|
TOUCH KEYS |
4 illuminated keys on the front glass with the following functions: – Standby Power ON/OFF, Touch cleaning enable/disable, Panel brightness increase, Panel brightness decrease |
|
HOUSING |
Aluminum, powder-coated, anti-bacterial |
|
MOUNTING |
VESA 100 |
|
POWER |
100-240V ~ 50/60 Hz (internal medical- grade PSU) or 12V DC (external medical-grade PSU) |
|
OPERATING TEMP |
0°C to +40°C / 5% to 95% rel. humidity (non-condensing) |
|
STORAGE TEMP |
-10°C to +60°C, 5% to 95% rel. humidity (non-condensing) |
|
INGRESS RATING |
IP54 protection with rear cable cover attached |
|
STANDARDS |
IEC 62368-1:2014; EN 62368-1:2014+A11:2017 Compliant with IEC 60601-1 Ed. 3.1 & IEC 60601 1-2:2014+AMD1:2020, EN 60601-1-2: 2015+A1: 2021 |
|
CERTIFICATIONS |
CE, FCC Part 15B, UL (E239251), NRTL |
|
WARRANTY |
1 Year |
