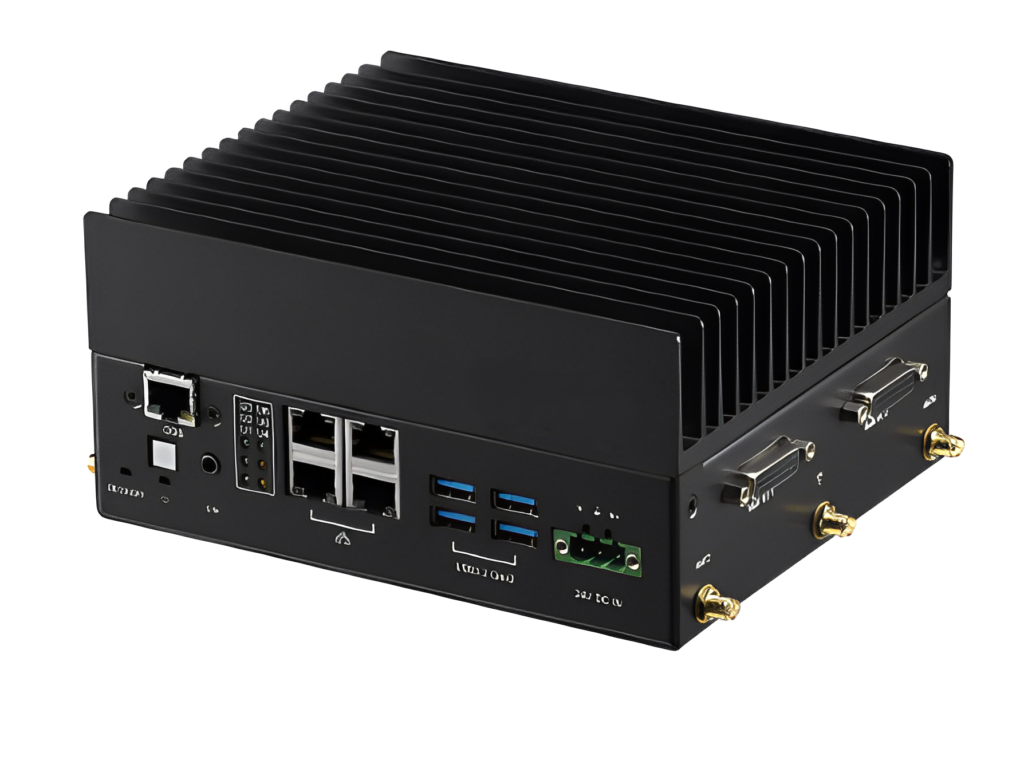

JN-12002
NVIDIA® CUDA® cores Jetson module
Features :
- Integrate Phison’s aiDAPTIV+ AI technology to bypass edge memory up to 320GB, offloading expensive HBM and GDDR memory to cost-effective flash memory.
- Elevated AI power: 8x faster TTFT and 4x longer token.
- Provide 4 Eth and 4 USB 3.2 Gen 2.
- Fanless and compact design: 175(W) x 145(D) x 85(H) mm.
- Support Linux® Ubuntu 22.04 and Jetpack 6.2.
- High efficiency Edge AI platform for on-premise GenAI deployments.
Description
NVIDIA® CUDA® cores Jetson module
Specification
| JN-12002 | |
|---|---|
|
AI PERFORMANCE |
275 TOPS |
|
DIMENSIONS
(W x D x H)
|
175x 145x 85mm |
|
GPU |
NVIDIA Ampere architecture with 2048 NVIDIA® CUDA® cores and 64 Tensor Cores |
|
CPU |
12-core Arm® Cortex®-A78AE v8.2 64-bit CPU 3MB L2 + 6MB L3 |
|
RAM |
64GB 256-bit LPDDR5 |
|
HDMI |
1x HDMI (Max. resolution 3840×2160 @ 60Hz) |
|
USB |
4x USB 3.2 Gen2 Type-A, 1x USB 3.2 Gen2 Type-C (OTG) |
|
ETHERNET |
4x 10/100/1000Mbps Ethernets (Optional PoE support, IEEE 802.3af/at) |
|
STORAGE |
64GB eMMC 5.1 |
|
M.2 |
M.2 for SSD |
|
SD CARD |
1x MicroSD Slot |
|
OUT-OF-BAND (OOB) |
Support Ethernet and Wifi, monitoring and managing at remote locations (thermal sensor, remote power on/off, restart, monitor debug port detection device status.) |
|
SERIAL PORT |
1x COM RS-232/RS-422/RS-485 (DB9) |
|
CAN BUS |
1x 2.0b, isolated (DB9) |
|
BUTTON |
1x power, 1x reset, 1x recovery |
|
OS |
Linux® Ubuntu |
|
AUDIO |
Mic-in (Mono), Line-out (Stereo) |
|
I/O CONNECTOR |
2x D-sub 26-pin connector (GPIO, I2C, SPI) provide cable for expansion |
|
SMA ANTENNA CONNECTOR |
6 |
|
MOUNTING |
Wall mount, VESA DIN rail (optional) |
|
VIBRATION |
Operating 5Grms, 5-500Hz, 3 axes w/M.2 SSD |
|
SHOCK |
Operating 100G, half sine 11ms duration w/ SD, M.2 SSD |
|
ESD |
Contact ± 4kV, Air ± 8kV |
|
REGULARITY |
CE & FCC class B, (EN61000-6-4/-6-2), CE-LVD & UL by CB, FCCID |
|
THERMAL SENSOR |
1x Thermal sensor |
|
WDT |
WDT supported |
|
POWER SWITCH |
1x Power ON/OFF Button (AT/ATX, Default: AT) |
|
DC/AC INPUT |
24V, 160 up to 220W power adapter |
|
OPERATING TEMPERATURE |
-20°C to 55°C with 0.6m/s airflow, at 50W (without wifi module, M.2 SSD)
-20°C to 40°C with 0.6m/s airflow, at MAXN (without wifi module, M.2 SSD)
|
|
STORAGE TEMPERATURE |
-40°C to 85°C |
|
HUMIDITY |
~95% @40°C (non-condensing, optional with fanless solution) |
|
CERTIFICATIONS |
CE, FCC |
|
WARRANTY |
1 Year |
