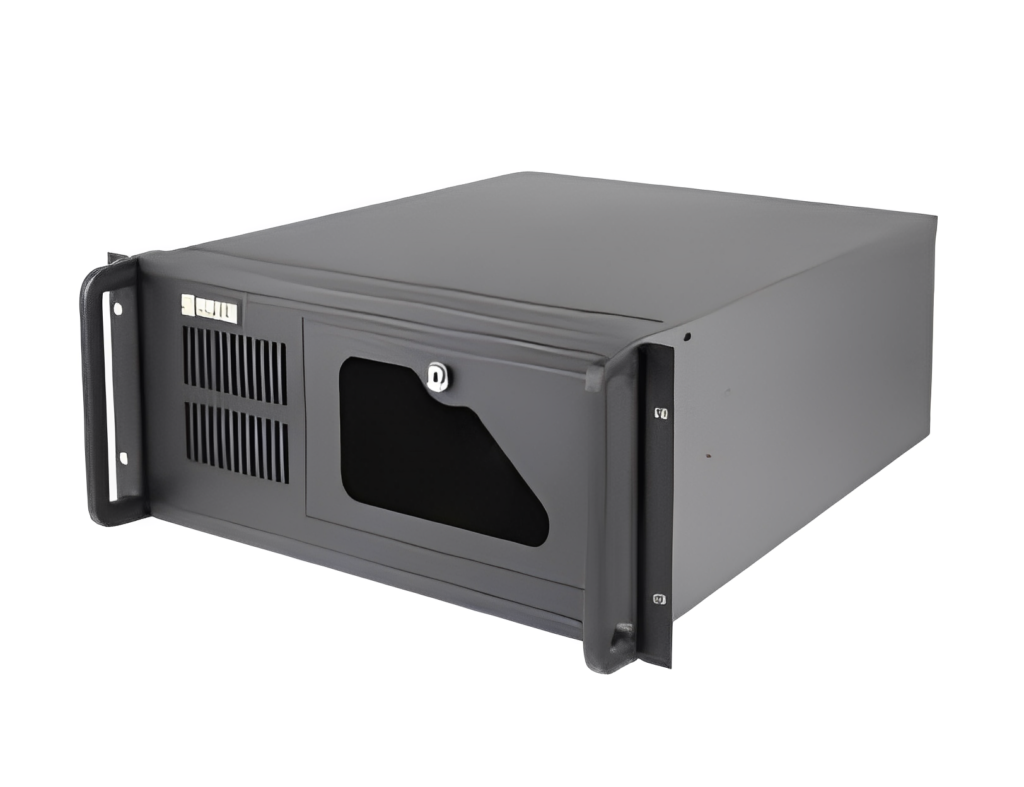

AIPC-510E
4U Industrial Grade Rackmount Chassis
Features :
- 4U rackmount design, meets EIARS-310C standard
- 8 x 3.5 " HDD drive bays, one 3.5" FDD bay and one 5.25" ODD drive bays
- Support MAX ATX 12 x 13" motherboard
- supplied with 1 x 120mm fan on front and 2 x 80mm fan on rear shield
- 7 PCI expansion slots
- Two front accessible USB2.0 port
- Lockable Door over front drive bays
- Smooth border prevents lacerating your skin
Description
4U Industrial Grade Rackmount Chassis
Specification
| AIPC-510E | |
|---|---|
|
DIMENSIONS (WXDXH) |
427mm x 530mm x 177mm |
|
M/B FORM FACTOR |
Support MAX 12 x 13″ motherboard |
|
DRIVE CONFIGURATION |
8 x 3.5″ HDD bays,1 x 5.25″ ODD bays,1 x 3.5″ FDD bay |
|
POWER SUPPLY FORM FACTOR |
AT/ATX power supply |
|
BUILT IN SYSTEM COOLING FAN |
1 x 120mm fan on front and 2 x 80mm fan on rear shield |
|
EXPANSION SLOT |
7 slots |
|
FRONT PANEL CONTROL |
Power ON/OFF x 1, System reset x 1, USB2.0 x 2 |
|
INDICATOR |
Power ON/OFF x 1, HDD x 1 |
|
MATERIALS |
SGCC 1.2mm |
