AIPC-510-B

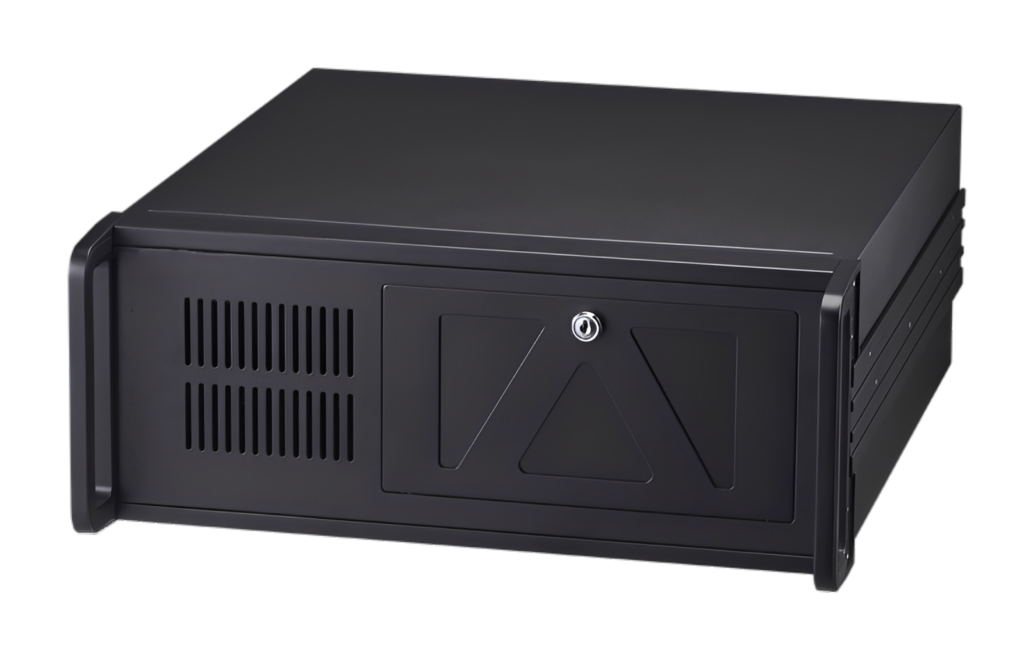

4U Industrial Grade Rackmount Chassis
Features :
- 19” rack mount standard.
- Supports 14-slot backplane and ATX, Micro-ATX, Mini-ITX motherboards.
- Two 5.25” external, one 3.5” external and one 3.5” internal drive bay
- Two USB ports inside front I/O.
- Replaceable, easy-to-clean air filter.
- PS2 ATX power supply.
- Low noise 12cm PWM controlled (full Loading 45db).
Description
4U Industrial Grade Rackmount Chassis
Specification
| AIPC-510B | |
|---|---|
|
DIMENSIONS |
16.8 in x 7 in x 17.4 in (427 mm x 177 mm x 447.9 mm) (W x H x D) |
|
MOTHERBOARD |
12″* 9.6″ (305* 245mm) |
|
DRIVE BAYS |
Two 5.25” and one 3.5” front external One 3.5” internal |
|
POWER SUPPLY |
PS2 form factor ATX |
|
FAN |
120 mm x 120 mm x 25 mm PWM ball bearing fan (103 CFM)
System fan speed would change refer to chassis thermal sensor, or CPU temperature
|
|
FRONT PANEL |
Front door with lock, two USB connectors LEDs: HDD active and system power System reset switch, ATX power switch |
|
BACKPLANE |
14-slot passive backplane
Mini-ITX, microATX, or ATX industrial motherboard
|
|
MATERIAL |
SGCC |
|
COLOR |
Beige/Black |
|
CARTON SIZE |
25 in x 13.8 in x 23.4 in (635 mm x 350 mm x 595 mm) (W x H x D) |
