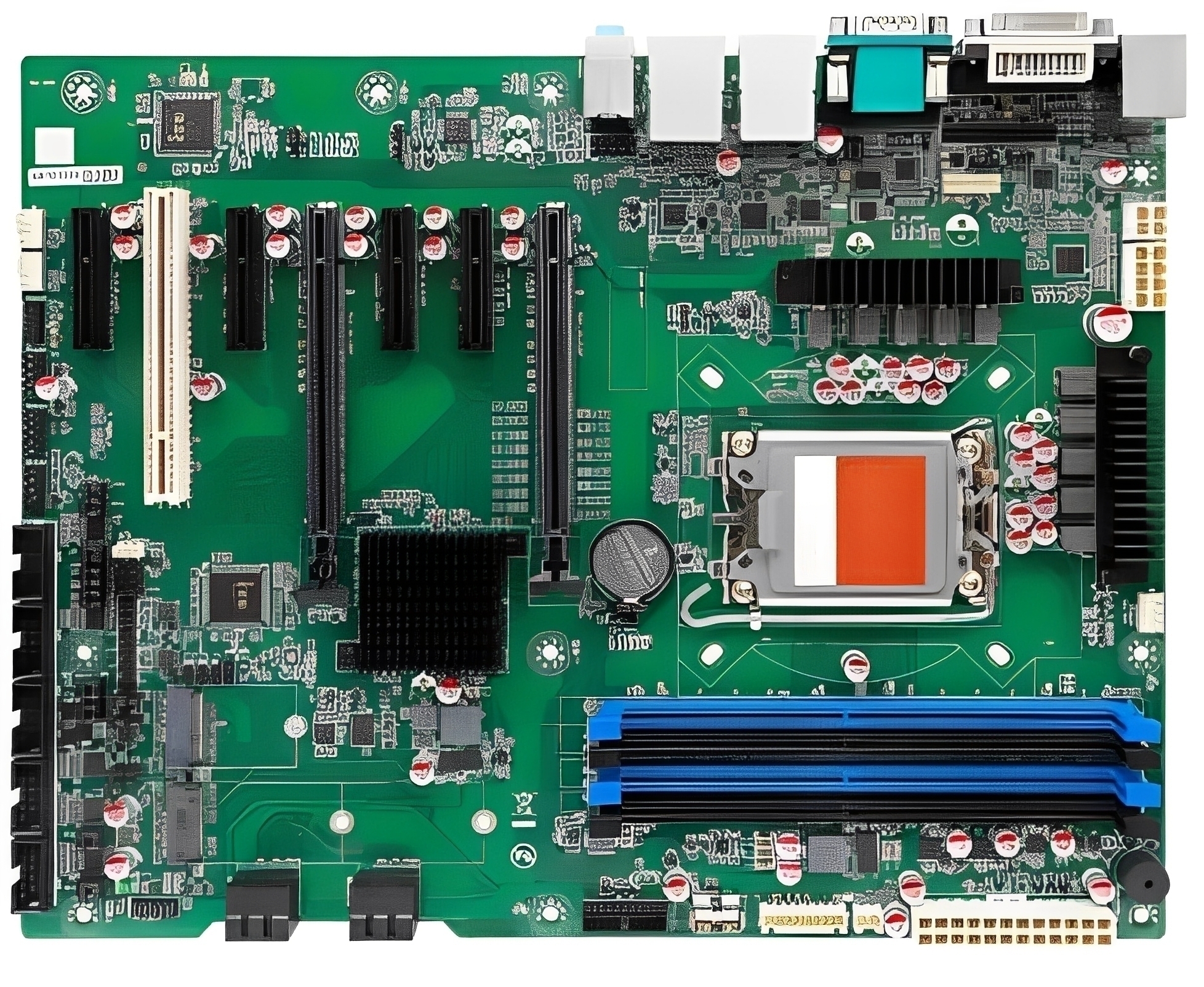

Form Factor

ATX (305 * 244mm)

CPU

Intel® LGA1700 Socket Core i3, i5, i7 Pentium,12th .13th Processor

Chipset

Intel® Q670 Chipset

BIOS

AMI UEFI BIOS

RAM

4 * DDR4 3200Mhz upto 128GB

Display Graphics

by CPU

VGA

4 * DDR4 3200Mhz upto 128GB

HDMI

1* HDMI (Max Resolution: 4096×2160@30Hz)

DVI-D

1* DVI-D (Max Resolution: 1920×1200@60Hz)

eDP

1*eDP (Max Resolution: 4096×2304@60Hz)

Multi Display

Dual Display

Ethernet

2 * RJ45

Audio

1, Line-Out + MIC +Line-in 1, Line-Out + MIC 1, SPDIF Out

PCI

1*PCI

PCIe

2* PCIe x16 &4 * PCIe X 4 slots

M.2

1 * M.2 Key-E Slot (PCIE+USB2.0+ CNVi, support WIFI +Bluetooth Module, 2230)

Storage

4 * SATA 1 * M.2 Key-M Slot (PCIe x4 GEN4 NVMe/SATA SSD Auto Detect, 2242/2280)

USB

8 *USB3.0 5Gbps 5*USB2.0

Serial

5, RS232, COM1-5

PANEL

1, PWR On +Reset +PWR_LED +HDD_LED

TPM

TPM2.0 (Optional)

WATCHDOG

System reset, programmable 1-255 sec or min

GPIO

8, 4* GPI+ 4* GPO, non-isolated 5V

PS/2

1

Audio Header

1

AT mode

1

Input PWR

24 pin/8 pin ATX PWR Connector

Operating Temp

0°C – 60°C

Storage Temp

-20°C – 75°C

Certifications

CE, FCC, RoHS, REACH

Warranty

2 Years
