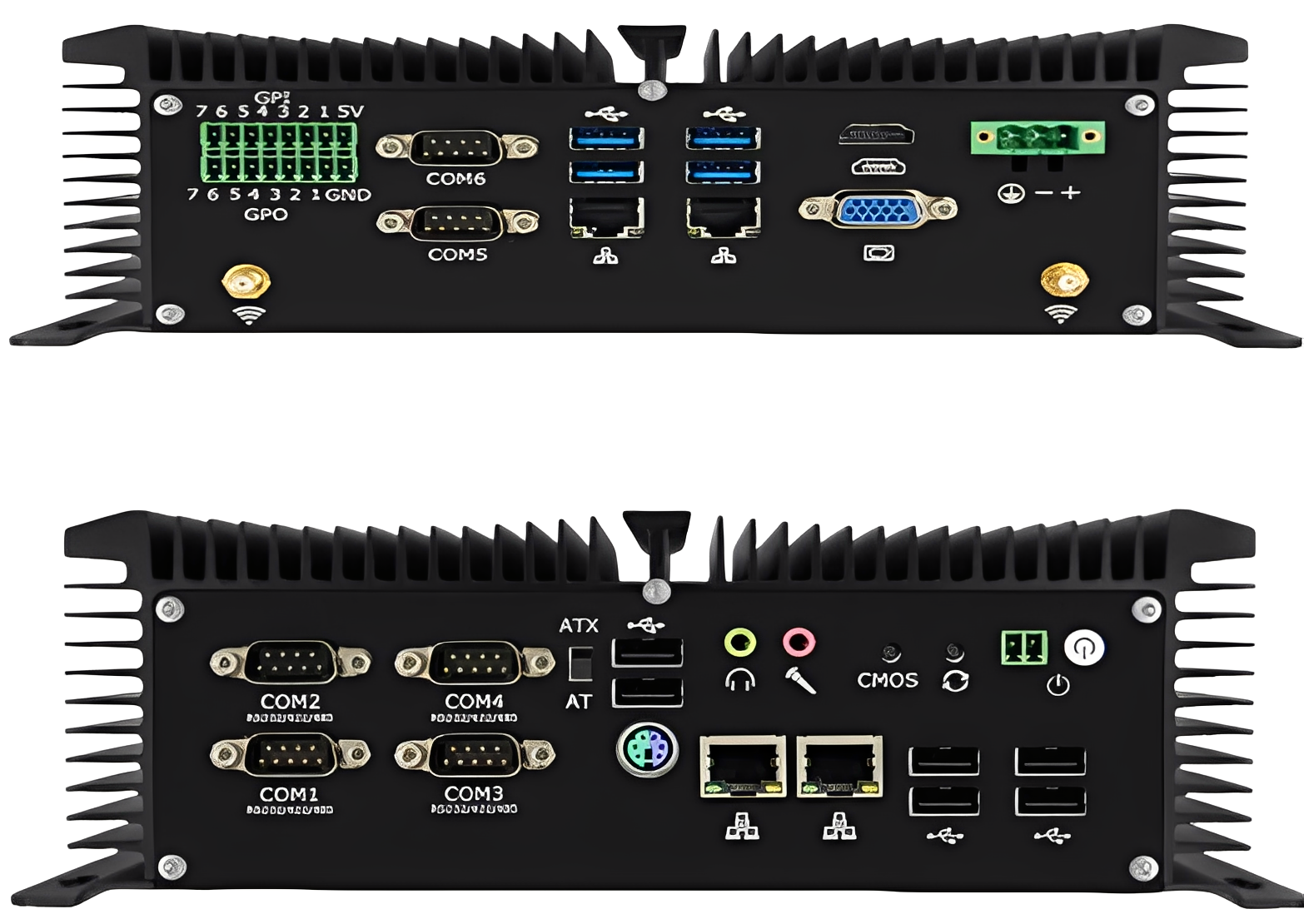

EBC-09003
IntelĀ® Core i5, i7-12th, Gen with fanless design
Features :
- Intel 12 Gen Core i5/i7 CPU.
- 4xLAN DDR5 SODIMM x2, max 64GB.
- 6 * COM serial ports (4 of which support RS485/RS442).
- 2x Intel i210/i211/i229 Gigabit LAN One-key restore, watchdog, diskless boot low power fanless.
- Industrial grade working temperature -20ā~60ā Wifi.
Specification
| EBC-09003 | |
|---|---|
|
DIMENSIONS |
249 x 150 x 86 mm |
|
CPU |
IntelĀ® Core i5-1235U/ i7-1265U/1255U, 10 Cores (Performance-core 2, Efficient-core 8), 12 Threads, Turbo frequency 5.0 GHz |
|
BIOS |
AMI EFI BIOS |
|
MINI-PCIe |
1x Mini-PCIe half card, support WIFI Bluetooth, 1x Mini-PCIe full card (with SIM card holder), support 3G/4G module, WIFI Bluetooth |
|
M.2 |
1* M.2 slot, supporting the M.2 2230 WIFI module |
|
RAM |
2xDDR5 SODIMM, Max 64G |
|
DISPLAY |
1x HDMI, 1x VGA |
|
HDMI |
1 |
|
VGA |
1 |
|
ETHERNET |
4 x GbE RJ45 Intel i211/i210/i229 |
|
STORAGE |
1x MSATA 1x M.2 NVME 2280 1x HDD/SSD |
|
USB |
4x USB3.0/3.2, 6x USB2.0 |
|
COM |
6x DB9 COM (COM1-COM4 Supports RS232/RS485/RS422, COM5 COM6 supports RS232 |
|
PS2 |
1 |
|
GPIO |
14x GPIO (7 input, 7 output) |
|
POWER BUTTON |
1x Power Button,1x Reset Button,1x Clear CMOS Button |
|
PWR TYPE |
1x 3pin Power phoenix Support: 9-36V DC |
|
ATX/AT |
1 |
|
ANTENNA PORT |
2xAntenna port, for WIFI/3G/4G |
|
EXTERNAL POWER SUPPLY |
AC 100 – 240V |
|
POWER CONSUMPTION |
ā¤20W |
|
MATERIAL |
Aluminum Alloy |
|
WDT |
Support hardware reset (256 level, 0-255 sec) |
|
OPERATION SYSTEM |
WindowsĀ® 10/11, LINUX |
|
CERTIFICATIONS |
CE, FCC |
|
HUMIDITY |
10%~95%, non-condensing |
|
MOUNTINGS |
Wall mounting, Embedded mounting |
|
OPERATING TEMPERATURE |
-20 to 60Ā°C |
|
STORAGE TEMPERATURE |
-30 to 70Ā°C, surface air flow |
|
ACCESSORIES |
Power adapter, Driver CD, 2.5-inch hard drive bracket, Screws |
|
WARRANTY |
2 Years |
