EBC-01023

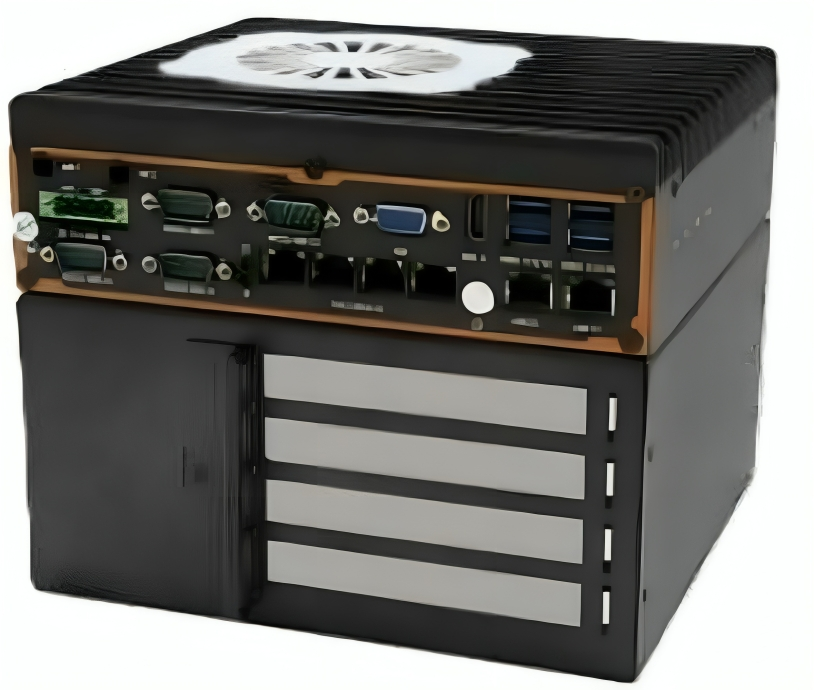

Embedded Intel 12th Gen Core i5 Processor aluminum alloy fan based design
Features :
- Fan based and rugged design
- Intel 12th gen Intel Core i5 on board processor
- 2*DDR4 SODIMM Memory, support 3200MHz ram, max up to 64GB
- Support 1*HDMI, 1* VGA display out.
- 6*Intel I210AT including 4 POE.
- 4*RS232/RS485 DB9.
- 6*USB3.0,2*USB2.0, In build 1*USB2.0
- DC 9-36V Wide Range Input.
Description
Embedded Intel 12th Gen Core i5 Processor aluminum alloy fan based design
Specification
| EBC-01023 | |
|---|---|
|
Dimension |
205*192.5*161.1MM |
|
CPU |
Intel i5-12450H 8 core 12 thread processor |
|
CHIPSET |
SOC |
|
RAM |
2*DDR4 SODIMM 3200Ghz MAX 64GB |
|
GRAPHICS |
Intel UHD Graphics |
|
DISPLAY |
1 *HDMI1.4, 1* VGA. |
|
ETHERNET |
6*Intel I210AT Gigabit Ethernet Including 4 POE |
|
MINI-PCIE |
1*MINIPCIE, Support WIFI |
|
M.2 |
1*M.2, support Key-E, 2230, Wi-Fi module ,1*M.2, support Key-B,3042/3052,5G
module |
|
SATA |
1 * SATA
|
|
M-SATA / M.2 |
1 * MSATA, 1*M.2/SSD, Support Key-M,2280, NVME PCIE x4 SSD |
|
AUDIO |
1* Line out interface, 1* MIC interface
|
|
USB |
6* USB3.0 interface, 2*USB2.0 |
|
SERIAL PORT |
4*RS232 / 485 DB9 |
|
SWITCH |
1* Power switch, 1* reset switch, 1* AC-LOSS |
|
LED |
1*Power LED，1*HDD LED |
|
PHONEIX |
1*4pin Phoenix terminal (1* power indicator signal, 1* power switch Signal) |
|
EXPANSION |
1*PCIE x16（x8 signal） 3*PCI |
|
DIP SWITCH |
6 group 6 -DIP Switch，COM1-6 RS232/485 switch via DIP，COM5-6 RS422 Via COM-SW2 |
|
POWER PORT |
1*4P P=5.08mmPhoenix Connector, Support 9~36V input |
|
POWER TYPE |
External Power Adapter |
|
INPUT POWER |
DC 9V~36V wide voltage input |
|
WATT |
90W |
|
POWER
CONSUMPTION |
> 60W |
|
OPERATING
TEMP |
-10℃～50℃ |
|
STORAGE TEMP |
-20℃～70℃ |
|
HUMIDITY |
5%-95% relative humidity, non-condensing |
|
VIBRATION |
0.5g rms/5-500HZ/random/operating |
|
CERTIFICATEION |
CE, FCC |
|
ACESSORIES |
1 * Power adaptor, 1* HDD Clamp |
|
WARRANTY |
2 Years
|
