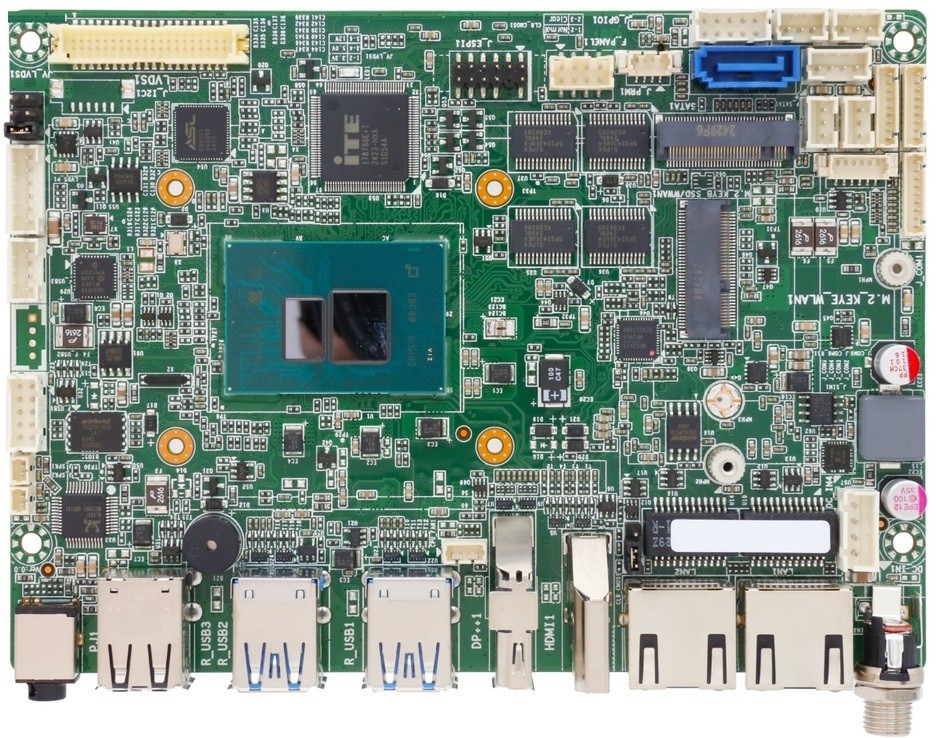

PROCESSOR

Intel Alder Lake-N Processor

DIMENSIONS

146 x 105 mm, 3.5-inch

CHIPSET

SOC

BIOS

AMI

MEMORY

DDR4-3200 MHz, 1 x non-ECC SO-DIMM, up to 16GB

M.2

1 x M.2 Key-E Slot (PCIe + USB 2.0, Support Wifi + BT, 2230) 1 x M.2 Key-B Slot (USB 3.0 + USB 2.0, Support 5G/4G, 2242/3052)

STORAGE

1 x SATA 3.0 7P Connector (with 1 x SATA power header), 1 x M.2 Key-M Slot (PCIe x1 NVMe / SATA SSD, 2280, auto detect)

AUDIO

1 x Line-out + MIC, Realtek Audio HDA Codec, 1 x Amplifier Wafer

ETHERNET

2 x RJ-45, Intel Giga LAN

LAN

2x 2-lanes MIPI-CSI camera connector or 1x 4-lanes

DP

1, Up to 4096 x 2304 @ 60Hz

HDMI

1 * HDMI, up to 4096 x 2160 @ 30Hz

USB

4 x USB 3.2 2 x USB 2.0, 3 x USB 2.0 Header

VGA

1

SIM

Micro SIM slot

POWER INPUT

1 x DC 12/19/24V Power Input Connector/ 2-pin terminal bloc

eDP, LVDS

1 x LVDS/eDP Header (LVDS Default), Up to 1920 x 1200 @ 60Hz (Default)

SERIAL

3 x RS-232, 2 x RS-232/TTL, 1 x RS-232/485

DISPLAY

eDP 4K @60Hz, LVDS 1080P

CAN

2

GPIO

1 x GPIO Header (Programmable support 8-bit GPIO

UART / JTAG

1x debug UART, 1x JTAG port, 2x 2 wire TTL UART ports on internal header

CERTIFICATIONS

CE / FCC Class B

OPERATING TEMPERATURE

-20°C to +70°C

STORAGE TEMPERATURE

-40°C to +85°C

WARRANTY

2 Years
