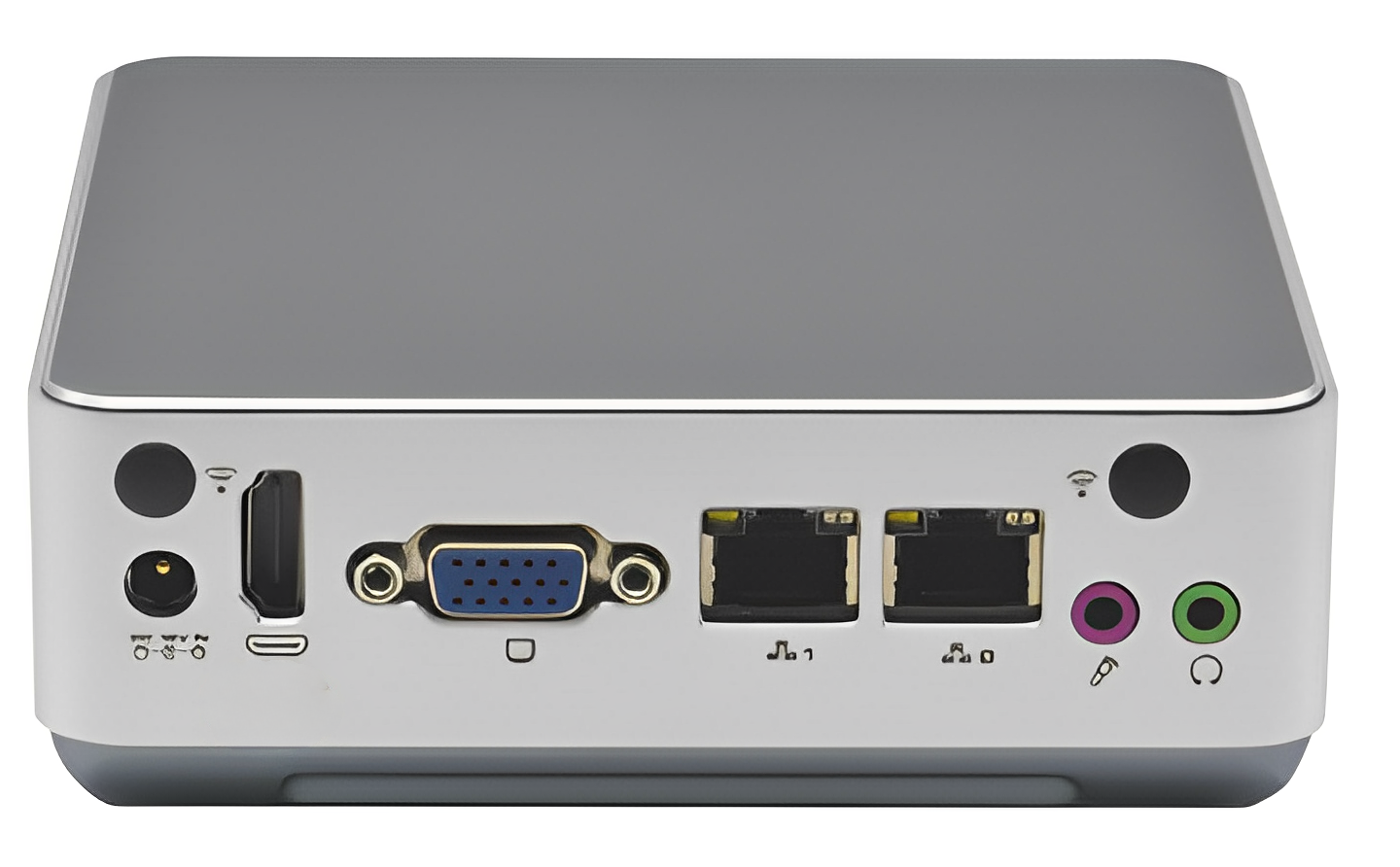

NUC-BOX-02001
Intel Processor Celeron J4125 with fanless design
Features :
- Integrated Intel Processor Celeron J4125 quad-core eight-thread processing.
- 1* DDR4 SODIMM memory slot, supporting 2400MHz memory, up to 16GB.
- Support 1*VGA and 1*H-DMI display output.
- Support 2* Re-altek8111H Gigabit network card, support network wake up, P-XE function.
- Support 4*USB interface.
- Support DC 12V power input.
- Fan cooling structure, all aluminum alloy .
Description
Intel® i5 -8th Gen processor with fanless industrial computer
Specification
| NUC-B0X-02001 | |
|---|---|
|
PROCESSOR |
Integrated Intel Processor Celeron J4125 quad-core eight-thread processor, TDP 15W |
|
DIMENSIONS |
128X128X46mm |
|
CHIPSET |
SoC |
|
OS SUPPORT |
Windows 10,11,64bit, Ubuntu |
|
BIOS |
AMI BIOS |
|
M.2 |
1*M.2 slot, 2280 Support SATA mode, 1*M.2 slot M.2 2230, support WiFi |
|
RAM |
1 x DDR4 SODIMM slot, supporting 2400MHz memory and a maximum of 16GB memory |
|
HDMI |
1 |
|
ETHERNET |
1 x PS/2 interface, keyboard and mouse in one,
2 x RJ45 Gigabit network port, 2 x Re-altek8111H
|
|
LED |
1 x power switch, 1 x PWR LED, 1 x HDD LED |
|
M.2 |
1* M.2 slot, support M.2 2280 NVME PCIEx4/SATA SSD auto detect |
|
AUDIO |
1* Line out，1* MIC, onboard ALC662 6 channel high fidelity audio controller |
|
DISPLAY |
1* HDMI2.0（4096×2304@60Hz, 1* HDMI 1.4(4096×2304@24Hz） |
|
COM |
2* RS232 DB9 COM port, support RS485/232 switchable, the 9th pin charged function |
|
POWER INPUT |
DC 12V, 90~264V @47~63Hz |
|
POWER SWITCH |
1* Power switch, 1* Reset switch, |
|
SIM |
1* SIM slot (need install 3G/4G module) |
|
USB |
2* USB2.0，2* USB3.0 |
|
VGA |
1 |
|
PWR TYPE |
AC TO DC, 36W / 60W (optional) |
|
USB |
4 x USB 3.0 interface |
|
1 X MINI PCIe |
1 x Mini PCIe slot |
|
INPUT PWR |
DC 12v |
|
WATCHDOG |
Support hardware reset function (256 levels, 0~255 seconds) |
|
CERTIFICATIONS |
CE, FCC, RoHS |
|
OPERATING TEMPERATURE |
-10℃～60℃ |
|
STORAGE TEMPERATURE |
-20℃～70℃ |
|
HUMIDITY |
5 ~ 90% Non condensing |
|
WARRANTY |
2 Years |
