DIMENSIONS

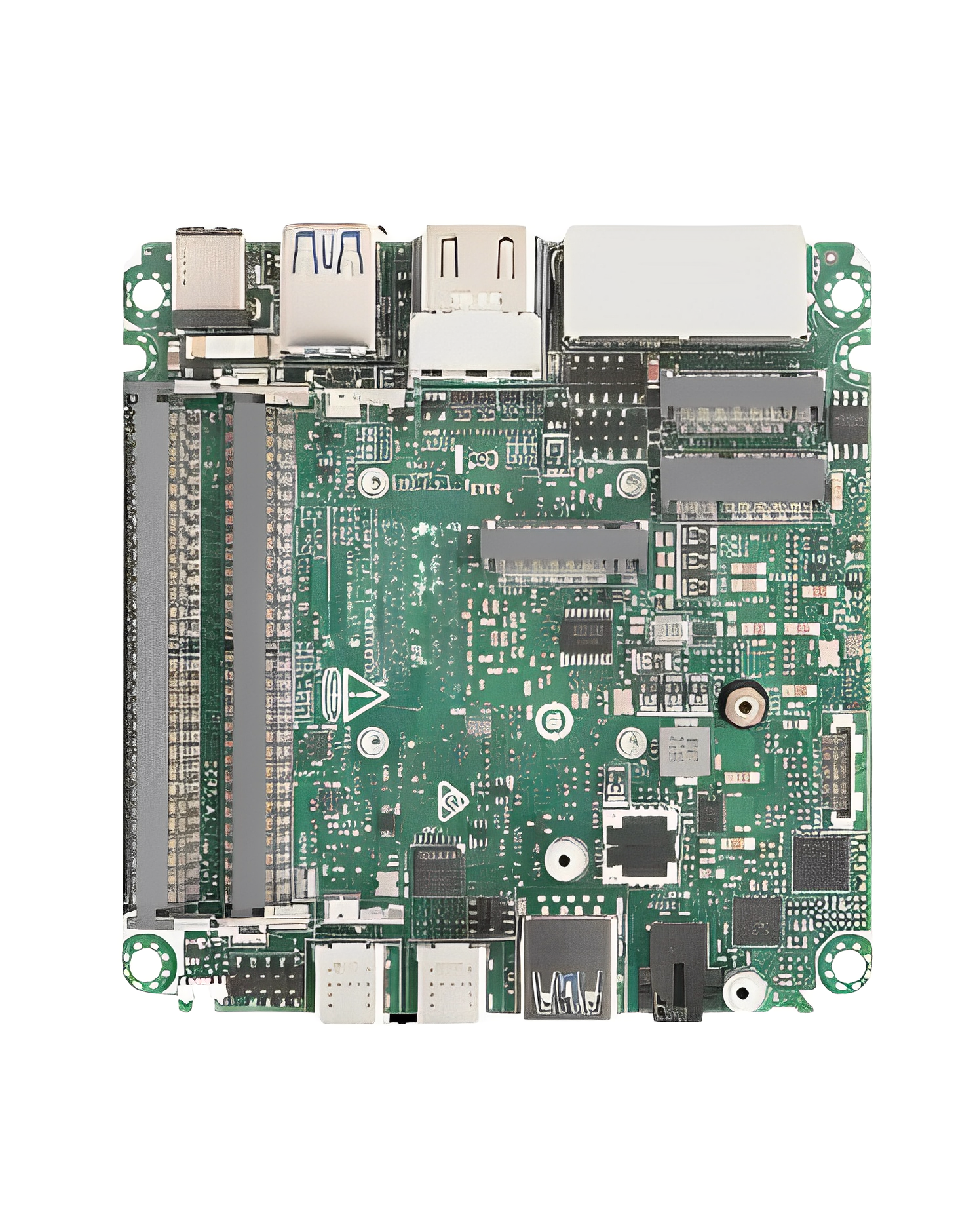

NUC (4.09-in x 4.02-in x 1.5-in, 10.4 cm x 10.2 cm x 3.8 cm)

CPU

Intel® Core™ Ultra processors (Arrow Lake-H/U)

CHIPSET

MCP

BIOS

AMI SPI 256 Mbit

RAM

2 x 262-pin SO-DIMM DDR5 5600MHz up to 96GB (48GB per DIMM)

CONTROLLER

Intel® Arc™ Graphics

HDMI

HDMI 2.1 TMDS (Max resolution up to 4096×2160@60Hz)

DISPLAYPORT

DisplayPort 2.1/ 1.4a, DP++ (Max resolution up to 4096×2160@60Hz)

MULTI-DISPLAY

Max 4 display (Included 2 outputs from Type-C)

M.2

1 x M.2 (KEY M, 2242) with PCIe Gen4 x4 for SSD 1 x M.2 (KEY M, 2242/2280) with PCIe Gen4 x4 for SSD 1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 and CNVi for Wireless

SATA

1 x SATA3.0 (6.0 Gb/s)

RAID

Intel® VMD RAID 0/1 **supported by identical interface (PCIe) PCIe interface: 2*M.2 Key M

AUDIO

Realtek ALC256, High-Definition Audio 1 (headphone & microphone jack)

ETHERNET

2 x 2.5 Gigabit (RJ-45) LAN LAN1: Intel® I226LM with 10/100/1000/2500 Mbps LAN2: Intel® I226V with 10/100/1000/2500 Mbps

USB

3 x USB 3.2 Gen2 (Type A) 1 x USB4/ThunderboltTM 4 (5V/3A, Supports DP 2.1 display output) 1 x USB3.2 gen2x2 (Type-C, 5V/3A, Supports DP1.4a display output) *For Thunderbolt support, please refer to support list 2 x USB 2.0 (1 x 2.00 pitch header)

DC JACK

1

COM

1 x COM (RS-232/RS-422/RS-485)

TPM

Intel® PTT

OUTPUT

From Super I/O to drag RESETCON#

INTERVAL

256 Segments, 0, 1, 2, …255sec

INPUT PWR

12V~24V DC-In Jack

POWER ON

AT/ATX Supported AT: Directly PWR on as power input ready ATX: Press button to PWR on after power input ready

OPERATING TEMP

-20℃~70℃

STORAGE TEMP

-40° C ~ 85° C

CERTIFICATIONS

CE, FCC

WARRANTY

2 Years
