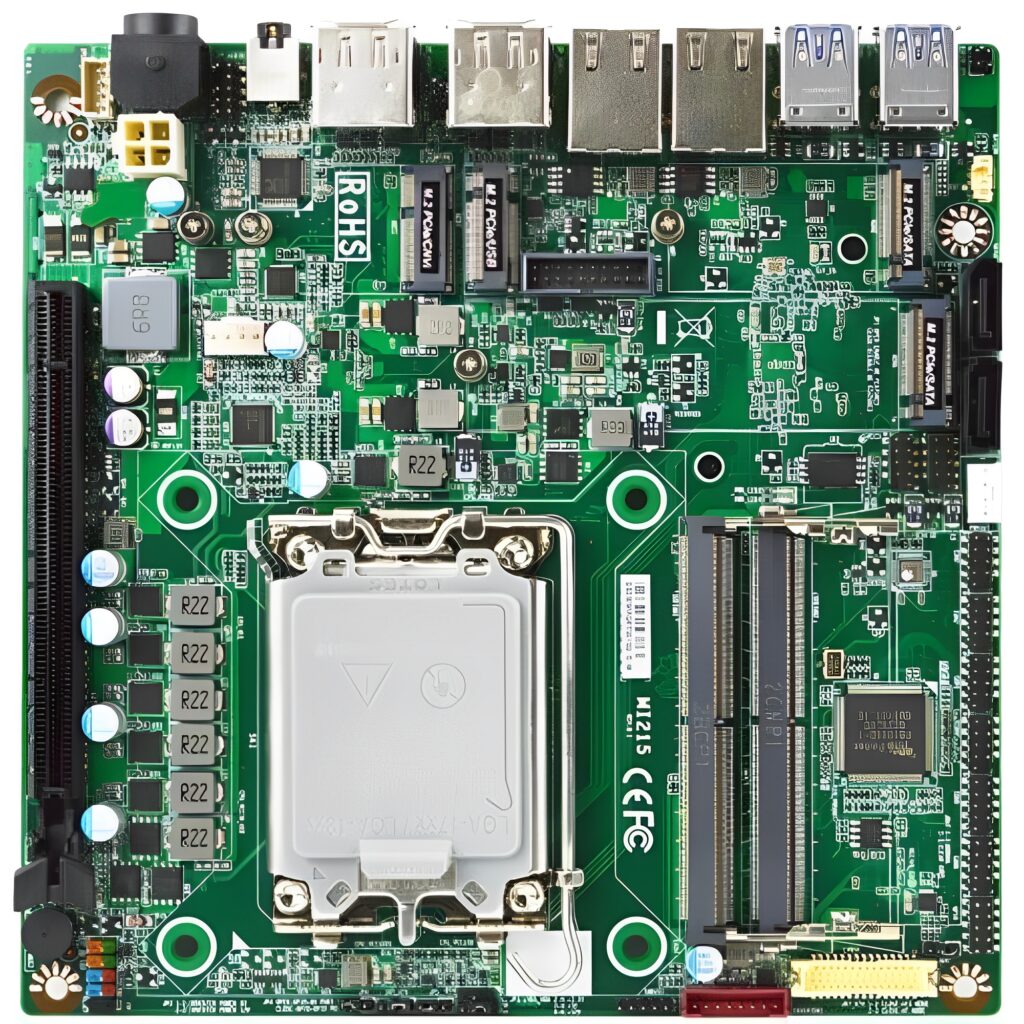

Form Factor

MTX (170 * 170mm)

CPU

Intel® LGA1700 12/13/14th Gen Socket Processor (Formerly Alder Lake-S, TDP 65W)

Chipset

Intel® R680E

BIOS

AMI Flash ROM

RAM

2 x DDR5 4800MHz, Dual Channel SO-DIMM, up to 96GB Actual memory support depends on the specific CPU and model

Display Graphics

Intel® HD Graphics

LVDS

1 x LVDS (Max. Resolution: 1920 x 1200 @60Hz, Co-lay eDP)

HDMI

2 x HDMI 2.0b (Max Resolution: 4096 x 2160@60Hz)

DP

2 x DP1.4a (Max Resolution: 4096 x 2304@60Hz)

MULTIPLE DISPLAY

Support 4 Displays

ETHERNET

1 x RJ45 for Intel® I226-V 2.5GbE,1 x RJ45 for Intel® I226-LM 2.5GbE

AUDIO

1 x Combo Audio Jack for Line-Out / Mic-In

PCIe

1 x PCIe x16 (Gen.4)

M.2

1 x M-Key 2242 (PCIe Gen.4 x4/SATA interface) support NVMe 1 x M-Key 2280 (PCIe Gen.3 x4/SATA interface) support NVMe 1 x E-Key 2230 (USB 2.0/PCIe x1) Support CNVio for Wi-Fi 1 x B-Key 3042/3052 (USB3.1/USB2.0/PCIe x1) for 4G/5G module

STORAGE

2 x SATA III, 1 x SATA Power Connector, RAID 0/1

USB

4 x USB 3.2 Gen 2×1 (10Gbps, Formerly USB 3.1 Gen 2) Internal Header for 2 x USB 3.2, Internal Header for 4 x USB 2.0

SERIAL

Internal Header for 2 x RS-232/422/485, Internal Header for 4 x RS-232

SMBUS

Yes

CHASSIS INTRUSION

1

GPIO

8 bit

SMBUS/ I2C

1

AUDIO HEADER

1

AT / ATX

1

INPUT POWER

DC IN 12v

OPERATING TEMP

0°C – 60°C

STORAGE TEMP

-20°C – 85°C

SHOCK

15G, 11ms duration

VIBRATION

1 Grms / 5~500Hz / Operation

RELATIVE HUMIDITY

10 ~ 90% relative humidity, non-condensing

CERTIFICATIONS

CE, FCC, Class A, LVD

WARRANTY

2 Years
