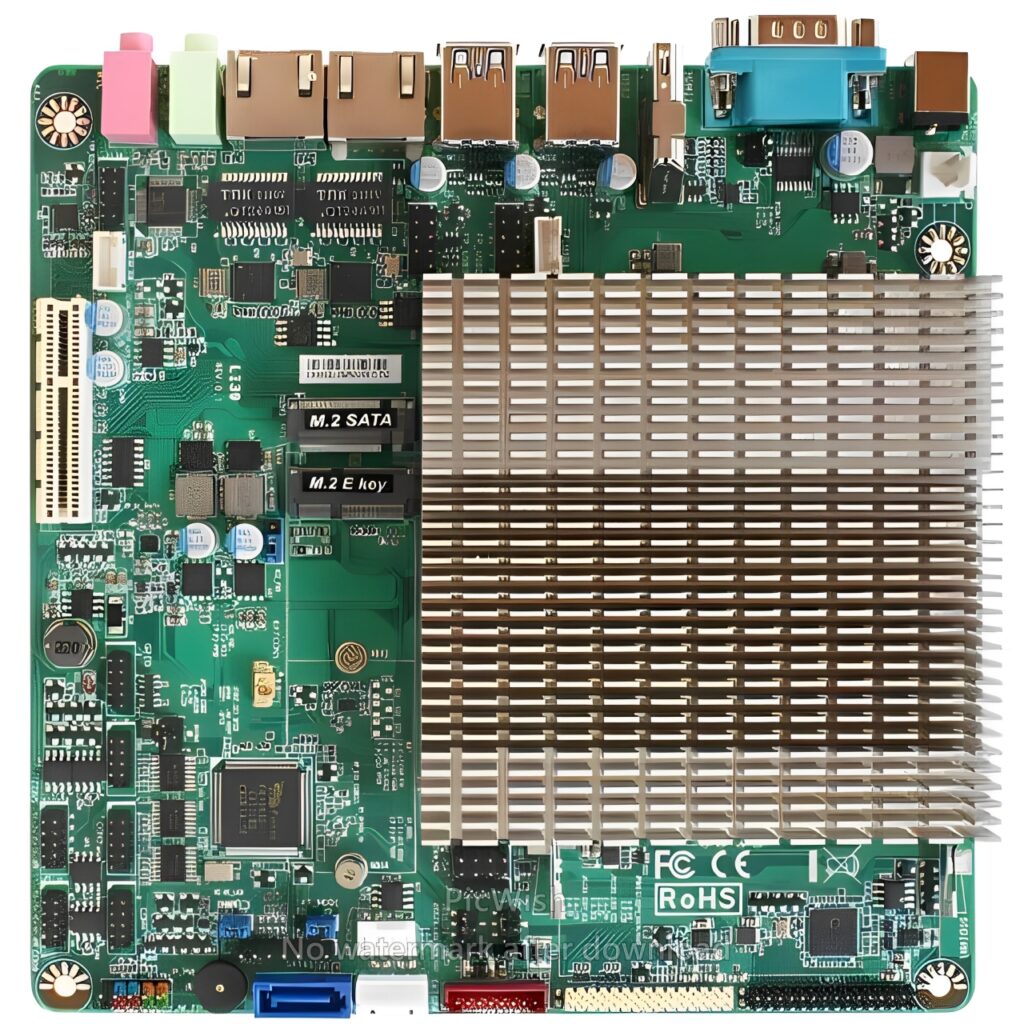

Form Factor

MTX (170 * 170mm)

CPU

Onboard Intel® Celeron® Processor J6412 (Formerly Elkhart Lake, TDP 10W)

Chipset

Intel® SoC

BIOS

UEFI

RAM

1 x DDR4 3200MHz, Single Channel SO-DIMM, up to 32GB

Display Graphics

Intel® UHD Graphics

LVDS

1 x 24-bit Dual Channel LVDS (Max. Resolution: 1920 x 1080 @60Hz)

HDMI

1 x HDMI 2.0b (Max Resolution: 4096 x 2160@60Hz)

eDP

1 x eDP (Max Resolution: 2560 x 1600@60Hz)

LVDS

1* LVDS/EDP (Max Resolution: 1920*1080@60Hz, Option)

MULTIPLE DISPLAY

Support 3 Displays

ETHERNET

2 x RJ45 for Intel® I226-V 2.5GbE

AUDIO

Line-in, Line-out, MIC

PCIe

1 x PCIe 3.0 x4

M.2

1 x M-Key 2242/2280 (SATA) 1 x E-Key 2230 (USB 2.0/PCIe 3.0 x1)

STORAGE

1 x SATA III 1 x SATA Power Connector

USB

4 x USB 3.2 Gen 1×1 (5Gbps, Formerly USB 3.1 Gen 1) Internal Header for 5 x USB 2.0

SERIAL

1 x DB-9 for RS-232 Internal Header for 3 x RS-232 Internal Header for 2 x RS-485

SMBUS

Yes

CHASSIS INTRUSION

1

GPIO

8 bit

SMBUS/ I2C

1

AUDIO HEADER

1

AT / ATX

1

INPUT POWER

DC IN 12v

OPERATING TEMP

0°C – 60°C

STORAGE TEMP

-20°C – 70°C

SHOCK

15G, 11ms duration

VIBRATION

1 Grms / 5~500Hz / Operation

RELATIVE HUMIDITY

10 ~ 90% relative humidity, non-condensing

CERTIFICATIONS

CE, FCC, Class A

WARRANTY

2 Years
