PROCESSOR

Rockchip® ARM Cortex A55(Quad Core up to 2.0GHz) Rockchip® RK809‐5 PMU

GRAPHICS

Mali‐G52 GPU, OpenGL ES1.1/2.0/3.2, OpenCL2.0, Vulkan 1.1

MEMORY

Onboard LPDDR4 1866MHz 2GB (Max 4GB)

EXPANSION

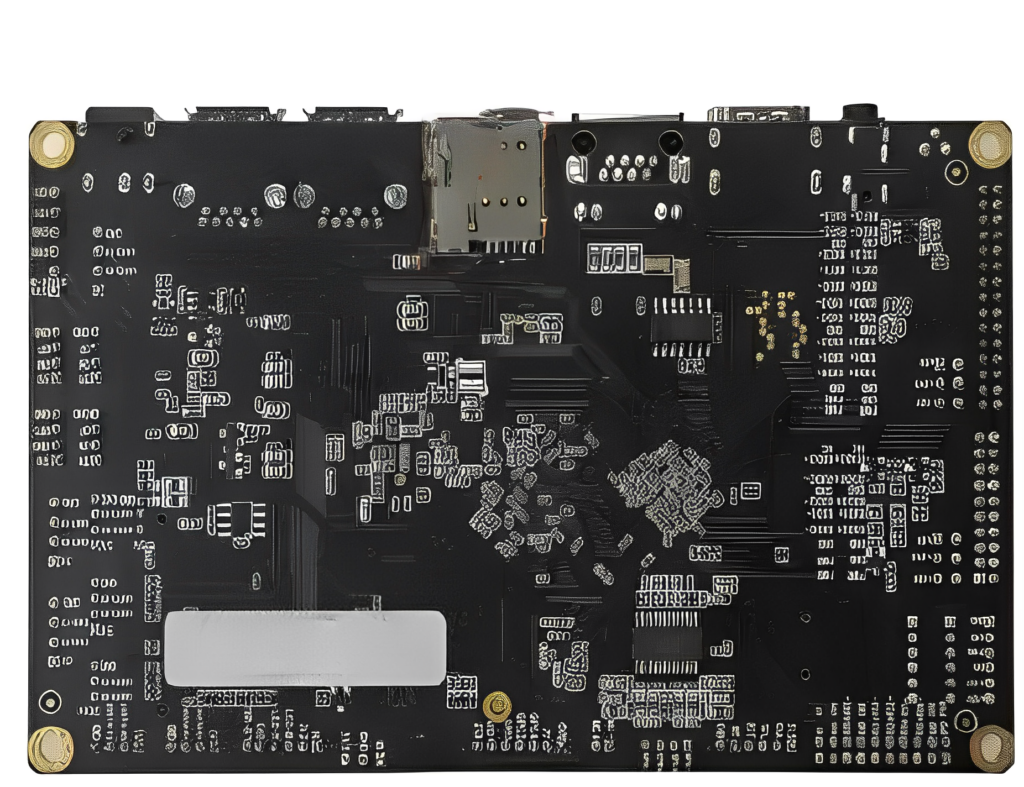

1* Micro SD (TF) ,1* SIM Card Socket (Back)

MIPI

1* MIPI – IN+12S

STORAGE

16GB Flash ROM

AUDIO

2 Channel HD Audio, Line-out jack

ETHERNET

1 * RJ-45 LAN ports

WATCHDOG TIMER

From Super I/O to drag RESETCON, 256 segments (0~255 sec)

DISPLAY

Triple Display

HDMI

1

LVDS

1* SINGLE LVDS, 1 * DUAL LVDS (1600 x 1200) (via Header)

USB

2 * USB 3.0 Gen1 ports, 4 * USB Header for 2.0

SIM

1* Micro SD Socket, 1* SIM Card Socket (Back)

SERIAL

2*RS232, 1*RS485 (via Header)

SMBUS/ I2C

1

eDP

eDP (1920 x 1080) (via Header)

GPIO

1

UART

1

PRT, CTP

1

POWER

12V DC-in jack

OPERATING TEMPERATURE

-10°C – 60°C

STORAGE TEMPERATURE

-20°C – 75°C

CERTIFICATIONS

CE, FCC, RoHS, ERP

WARRANTY

2 Years
