SBC-05001

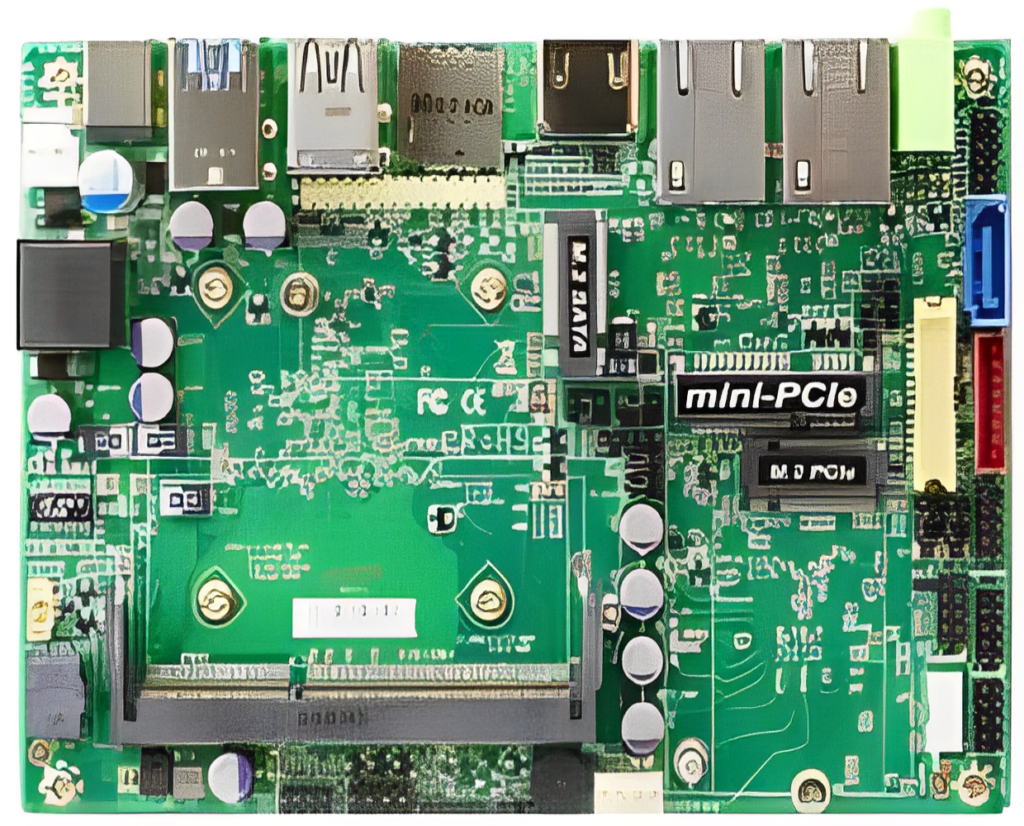

Intel Atom x5-E3940 Quad-core 3.5 SBC Motherboard
Features :
- Long-Life Embedded Class Industrial Motherboard.
- CPU Mounted on Bottom of Motherboard for Easy Integration into Fanless Systems.
- Intel Atom x5-E3940 Quad core.
- Supports DDR3L-1866 up to 8GB Total.
- HDMI, LVDS, eDP 4K @60Hz.
- 2 * Intel i225-V 2.5GbE LAN.
- 1 * M.2 3042 B-key with SIM Card Slot.
- 3 * USB 3.1 Gen1, 3 * USB 2.0 Ports.
- 2 * Serial Ports, 8-bit GPIO, Watchdog Timer.
- 9-36V DC-In Jack or 2-pin Alternate internal Connect.
- 3.5” SBC Form Factor (148mm x 102mm).
Description
Intel Atom x5-E3940 Quad-core 3.5 SBC Motherboard
Specification
| SBC-05001 | |
|---|---|
|
PROCESSOR |
Intel Atom x5-E3940 Quad-core |
|
GRAPHICS |
Intel HD Graphics |
|
MEMORY |
1 * 204-pin SO-DIMM slot supporting DDR3L-1866 up to 8GB total, 1.35V required |
|
Chipset |
SOC |
|
MINI-PCIe |
1 * Full-size Mini-PCI Express slot |
|
M.2 |
1 * M.2 3042 B-key with Micro SIM card slot (3G/4G/LTE) |
|
STORAGE |
1 * SATA3 6Gb/s port, 1 * M.2 SATA M-key 2242 length |
|
AUDIO |
Realtek HD Audio, 1 * Line-out jack |
|
ETHERNET |
2 * RJ-45 LAN (Intel i225-V 2.5GbE) ports |
|
BIOS |
AMI 128Mb Flash ROM |
|
OTHER FEATURES |
Support ACPI S3, AHCI, CPU Smart FAN, Watchdog Timer 10-255 min/sec, Optional TPM |
|
USB |
3 * USB 3.1 Gen1 ports, 1 * USB 2.0 port
1 * USB Header for 2 * USB 2.0 ports
|
|
HDMI |
1 4k @30Hz |
|
SIM |
Micro SIM slot |
|
SERIAL |
2 * Serial headers (1 * RS232, 1 * RS232/422/485) |
|
SMBUS/ I2C |
1 |
|
eDP, LVDS |
eDP 4K @60Hz, LVDS 1080P (via Header) |
|
GPIO |
8-bit GPIO header |
|
POWER |
+9-36V DC-in jack (2.5mm ID/5.5mm OD)
2-pin 9-36V Alternative power connector (via Header)
|
|
OPERATING TEMPERATURE |
0°C – 60°C |
|
STORAGE TEMPERATURE |
-40°C – 85°C |
|
CERTIFICATIONS |
CE, FCC, RoHS, ERP |
|
WARRANTY |
2 Years |
