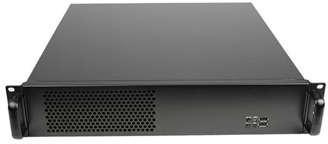

Form Factor

482(W)* 450(D)* 89 mm(H)

CPU

Intel® Core™ Ultra 9 285K Processor 24 Cores 24 Thread Processor 125W

Chipset

Intel® Q870, TDP 6W

BIOS

128Mb Flash ROM RAM 64GB DDR4 No ECC U-

RAM

64GB DDR4 No ECC U-DIMM Ram

Display Graphics

by CPU

VGA

1, VGA, max 1920*1200@60Hz

HDMI

1, HDMI, max 4096*2160@60Hz

DP

1, DP++, max 4096*2160@60Hz

ETHERNET

1, Intel® i219V GbE Ethernet Controller 1, Intel® i210AT GbE Ethernet Controller

Audio

1, Line-Out + MIC +Line-in 1, Line-Out + MIC 1, SPDIF Out

EXPANSION

2* PCIe x16 slots TO support dual GPU.( support PCIE x16 (PCIE_16X_SLOT1), When PCIE_16X_SLOT2 can’t be used.)

M.2

1, M.2 E-Key 2230, PCIe + USB2.0, support WIFI + Bluetooth 1* 1TB , M.2 M-Key 2280, PCIE x4/SATA, support NVMe/SATA SSD, Auto detect

Storage

4 * SATA

USB

4, USB3.2 5Gbps 2, USB3.2 10Gbps , 7 * USB2.0

SERIAL

6, RS232, COM1-6

PANEL

1, PWR On +Reset +PWR_LED +HDD_LED

TPM

TPM 2.0(Optional)

WATCHDOG

System reset, programmable 1-255 sec or min

GPIO

8, 4* GPI+ 4* GPO, non-isolated 5V

SMBUS/ I2C

1

SMBUS/ I2C

1

AUDIO HEADER

1

AT MODE

1

Input PWR

24 pin/8 pin ATX PWR Connector(750W Smps)

OPERATING TEMP

0°C – 60°C

STORAGE TEMP

-20°C – 75°C

CERTIFICATIONS

CE, FCC

WARRANTY

2 Years
